Hayward

HCP 4000 Series Pump 5.5HP 203/460V

Product #:CHT-10-1004

Mfg. Part #:HCP40553

  • This product is obsolete.
  • The superceded product was not found.

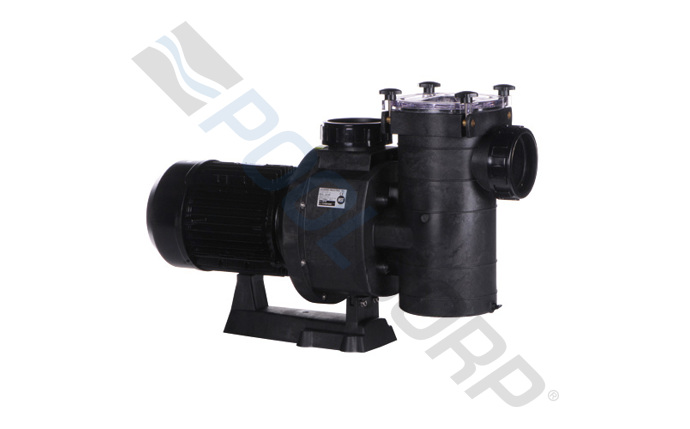

Hayward HCP40553 HCP 4000 Series Pump 5.5HP 203/460V

Hayward

HCP 4000 Series Pump 5.5HP 203/460V

Product #:CHT-10-1004

Mfg. Part #:HCP40553

Description

Hayward HCP40553 HCP 4000 Series Pump 5.5HP 203/460V. Hayward Commercial self-priming pumps provide a technologically advanced alternative to traditional bronze or cast iron pumps. They have Thermoplastic, glass-reinforced hydraulic housings, so they're lighter weight for easier one-man installation. Impellers and flanges are made from glass-reinforced Noryl™. HCP pumps are quiet, efficient and designed to recirculate lightly
treated water in pools, spas and water features. They won’t rust in a chemically corrosive atmosphere. A clear lid allows visual inspection of the strainer basket, to see when it needs cleaning, and opens without tools. Four pumps in the Hayward Commercial Series allow right-sizing for most applications.

Branch Availability

content loaded

Specifications

  • BrandHayward
  • ApplicationAll Purpose, Fountains, Spa
  • Shipping Dimensions37.3 x 15.5 x 24.5 inch
  • ColorBlack
  • Commercial, Residential, or ProfessionalCommercial
  • Each Product Weight110 pound
  • Frequency Rating (Hz)60
  • Horsepower5.5 horse power
  • MaterialThermoplastic
  • Minimum Sell Quantity1
  • Motor Enclosure TypeTotally Enclosed Fan Cooled
  • Pallet Quantity3
  • PhaseThree
  • Product Weight110 pound
  • Standards ApprovalsNSF Certified, ANSI Standard 50 Certified
  • Thrust HP5.5
  • Voltage230V
  • UPC Code0610377340670

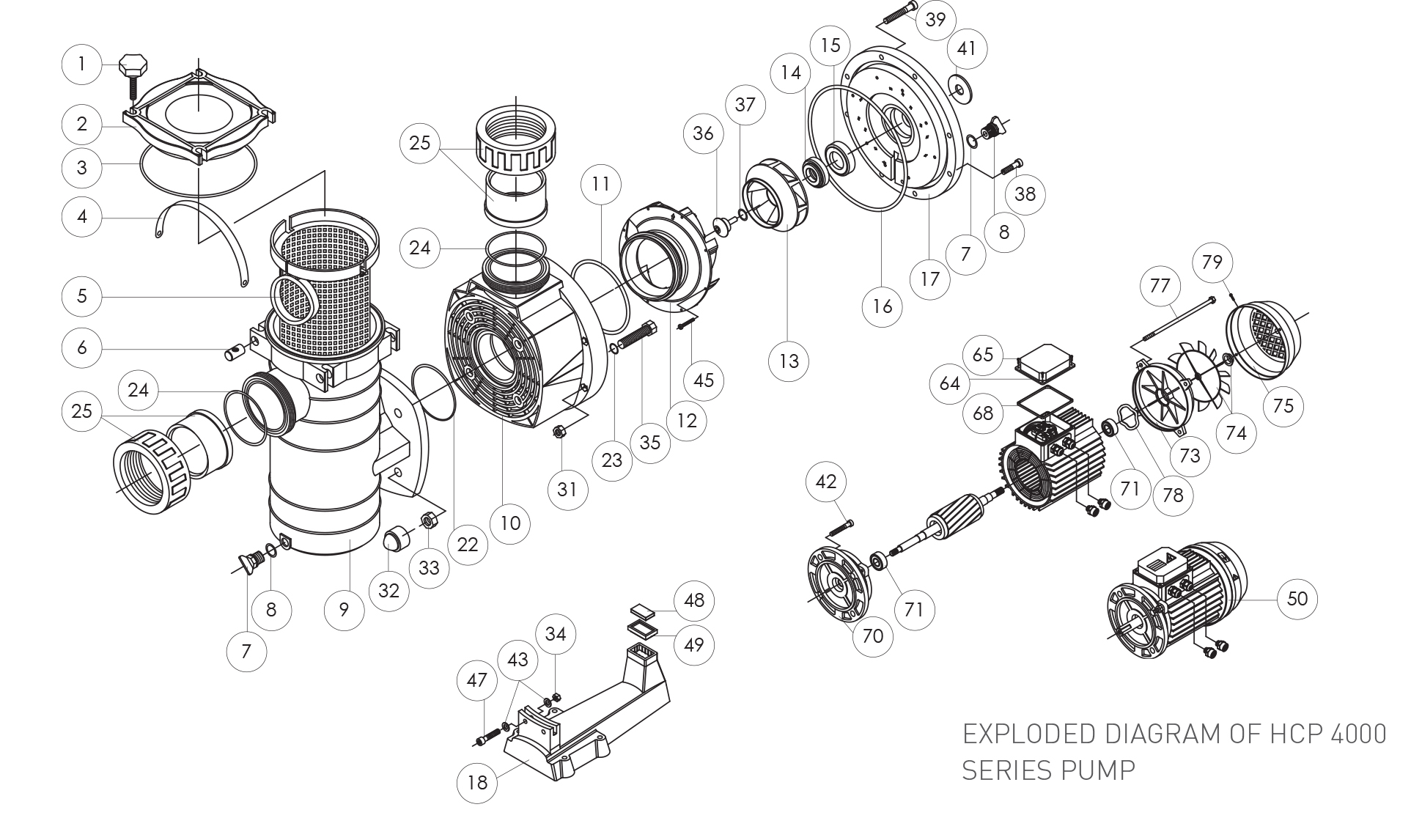

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes
2, 3
2, 3
HCXP6001A
HAY-101-7500
Product #: HAY-101-7500
Mfg #: HCXP6001A
Notes:
Pump Lid, Pump Lid O-ring

Wholegoods

There are no wholegoods available.
