Hayward

HCP 4000 Series Pump 7.5HP 230/460V

Product #:CHT-10-1005

Mfg. Part #:HCP40753

  • This product is obsolete.
  • The superseded product was not found.

Hayward HCP40753 HCP 4000 Series Pump 7.5HP 230/460V

Hayward

HCP 4000 Series Pump 7.5HP 230/460V

Product #:CHT-10-1005

Mfg. Part #:HCP40753

EA

Description

Hayward HCP40753 HCP 4000 Series Pump 7.5HP 230/460V. Hayward Commercial self-priming pumps provide a technologically advanced alternative to traditional bronze or cast iron pumps. They have Thermoplastic, glass-reinforced hydraulic housings, so they're lighter weight for easier one-man installation. Impellers and flanges are made from glass-reinforced Norylâ„¢. HCP pumps are quiet, efficient and designed to recirculate lightly
treated water in pools, spas and water features. They won’t rust in a chemically corrosive atmosphere. A clear lid allows visual inspection of the strainer basket, to see when it needs cleaning, and opens without tools. Four pumps in the Hayward Commercial Series allow right-sizing for most applications.

Feature Bullets

  • Lightweight, glass-reinforced Noryl hydraulic body
  • Transparent lid allows visual inspection of strainer basket
  • Totally Enclosed Fan Cooled motor (TEFC)
  • Elevated base for better ventilation and protection from flooding
  • Tool-free, quick release lid for fast and easy access to strainer basket
  • 4" union connections
  • 1 year limited warranty
  • NSF/ANSI Standard 50 Certified
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationAll Purpose, Fountains, Spa
    • Shipping Dimensions37.3 x 15.5 x 24.5 inch
    • ChannelNone
    • ColorBlack
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight125 pound
    • Frequency Rating (Hz)60
    • Horsepower7.5 horse power
    • MaterialThermoplastic
    • Minimum Sell Quantity1
    • Motor Enclosure TypeTotally Enclosed Fan Cooled
    • Pallet Quantity3
    • PhaseThree
    • Product Weight125 pound
    • Standards ApprovalsNSF Certified, ANSI Standard 50 Certified
    • Thrust HP7.5
    • Voltage230V
    • Warranty - AdditionalLabor - 1 year
    • Warranty - General1 years
    • UPC Code0610377340687

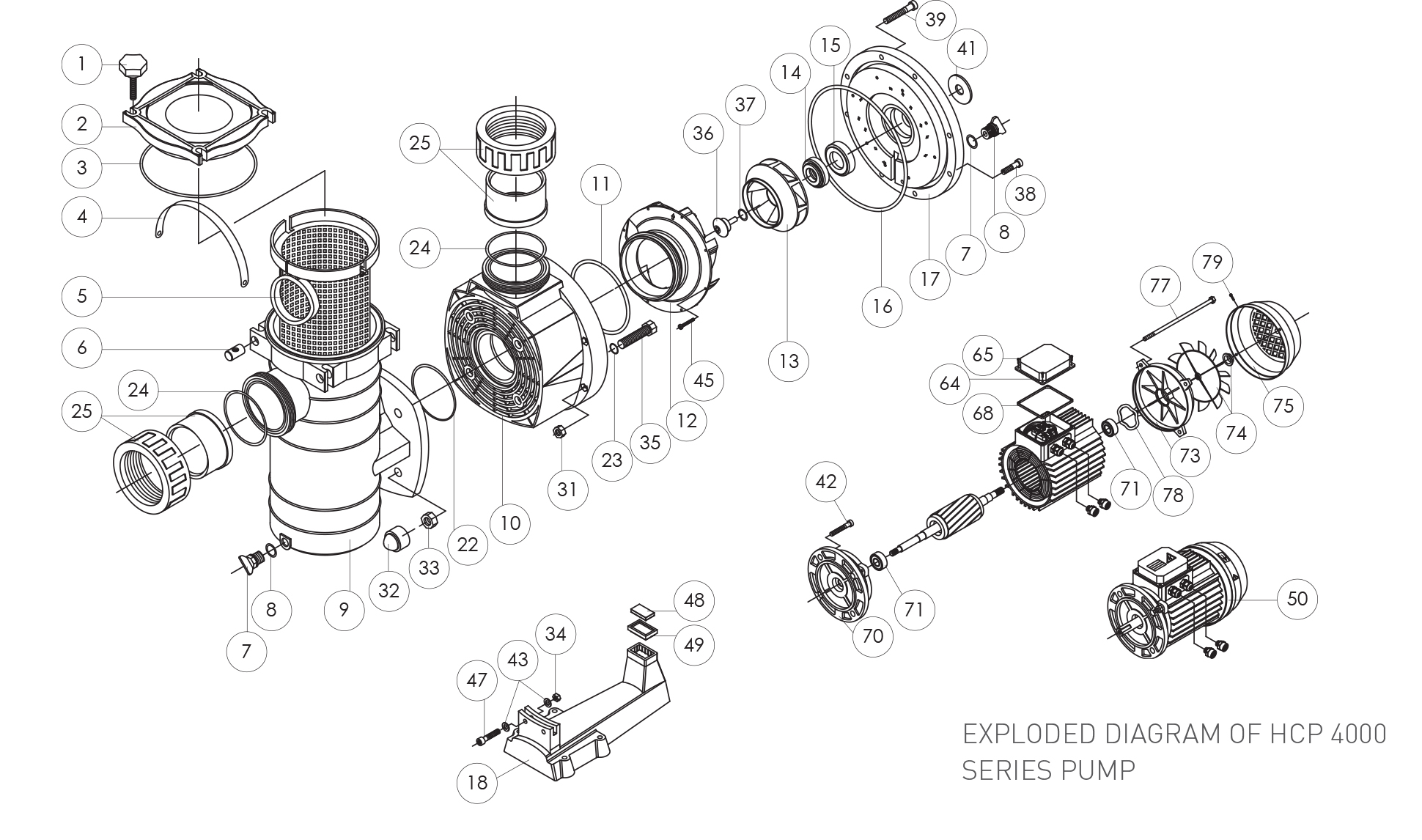

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    2, 3
    2, 3
    HCXP6001A
    HAY-101-7500
    Product #: HAY-101-7500
    Mfg #: HCXP6001A
    Notes:
    Pump Lid, Pump Lid O-ring
