HeatPro® Heat/Cool Heat Pump 45K BTU 208/230V

Product #:HAY-15-0250

Mfg. Part #:HP50HA1

  • This product is obsolete.
  • The superceded product was not found.

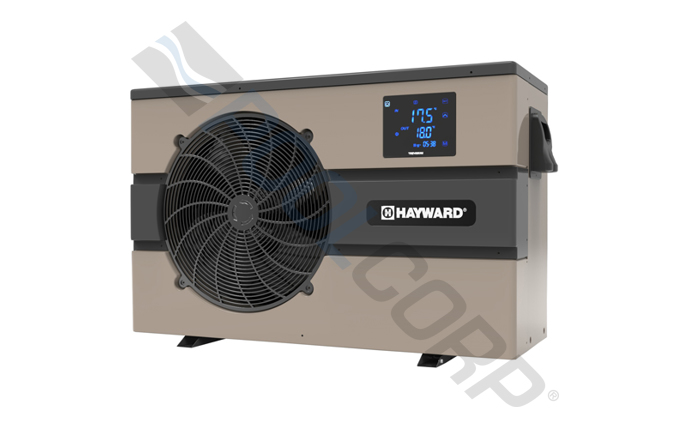

Hayward HP50HA1 HeatPro® Horizontal Fan Heat Pump

Hayward

HeatPro® Heat/Cool Heat Pump 45K BTU 208/230V

Product #:HAY-15-0250

Mfg. Part #:HP50HA1

Description

Hayward’s HP50 HA1 Heat Pump is engineered with advanced technology that uses less energy than natural gas and propane heaters, making it an energy-efficient, economical solution for any above-ground pool. And with the ability to provide ideal water tempe

Documents

Feature Bullets

  • 45,000 BTU heating capacity
  • Lower energy requirements than natural gas and propane heaters
  • Also includes a cooling mode to help lower water temperature
  • Durable titanium heat exchanger provides exceptional corrosion protection
  • Extremely quiet operation
  • Smooth operation at low ambient temperatures
  • Digital control panel with a built-in programmable timer
  • IMPORTANT NOTE: Not approved for installation in Florida.

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationAbove Ground, Pool
    • Shipping Dimensions44 x 19 x 27.5 inch
    • BTU Output45000
    • ChannelNone
    • Commercial, Residential, or ProfessionalResidential
    • Compressor TypeRotary
    • Each Product Weight158 pound
    • Flow Rate Max25 gal/min
    • Flow Rate Min16 gal/min
    • Frequency Rating (Hz)60
    • Green or Energy Efficient ProductTrue
    • Master Carton Quantity1
    • Min Circuit Ampacity12 amperage
    • Minimum Sell Quantity1
    • PhaseSingle
    • Standards ApprovalsAHRI Certified
    • Voltage208V, 230V
    • UPC Code0610377379434

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

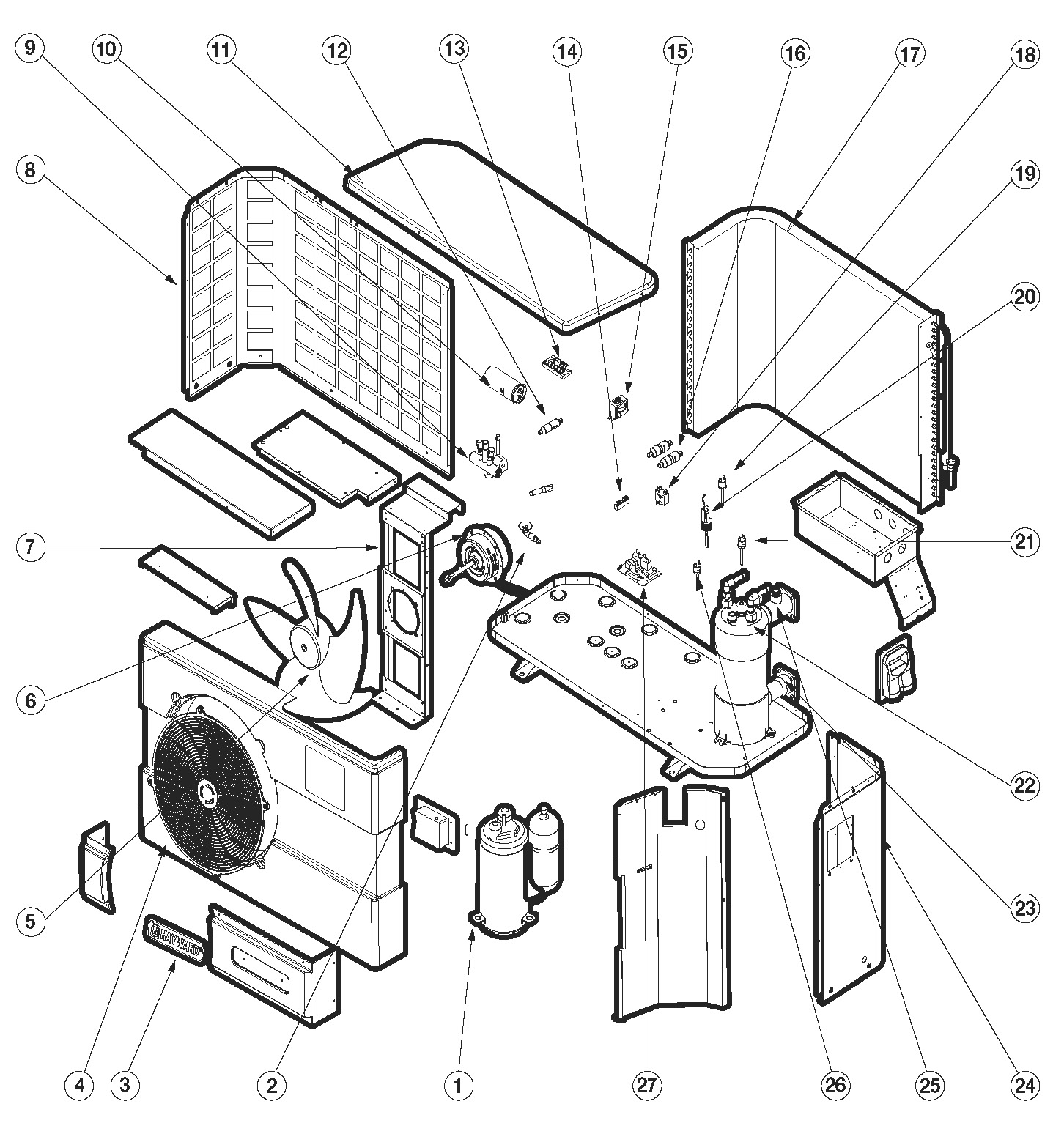

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    HPX20000-110041
    HAY-151-3423
    HPX20000-110041 COMPRESSOR
    Product #: HAY-151-3423
    Mfg #: HPX20000-110041
    2
    2
    HPX3400-2203
    Drainage Connector
    Product #:
    Mfg #: HPX3400-2203
    3
    3
    HPX20000-230596
    Hayward Logo
    Product #:
    Mfg #: HPX20000-230596
    4
    4
    HPX32008-220051
    Front Panel
    Product #:
    Mfg #: HPX32008-220051
    5
    5
    HPX3500-2701
    HAY-151-3234
    HPX3500-2701 AXIAL FAN
    Product #: HAY-151-3234
    Mfg #: HPX3500-2701
    6
    6
    HPX20000-330124
    HAY-151-3377
    HPX20000-330124 FAN MOTOR
    Product #: HAY-151-3377
    Mfg #: HPX20000-330124
    7
    7
    HPX32012-210742
    Motor Bracket
    Product #:
    Mfg #: HPX32012-210742
    8
    8
    HPX32012-210736
    Left Panel
    Product #:
    Mfg #: HPX32012-210736
    9
    9
    HPX2001-1418
    HAY-151-3287
    HPX2001-1418 4-WAY VALVE
    Product #: HAY-151-3287
    Mfg #: HPX2001-1418
    10
    10
    HPX2000-3505
    HAY-151-3235
    Compressor Capacitor for HP50A and HP50A1 Heat Pumps
    Product #: HAY-151-3235
    Mfg #: HPX2000-3505
    11
    11
    HPX32008-220054
    Top Cover
    Product #:
    Mfg #: HPX32008-220054
    12
    12
    HPX2001-1499
    Check Valve
    Product #:
    Mfg #: HPX2001-1499
    13
    13
    HPX20000-390231
    Terminal Block 5 Connnector
    Product #:
    Mfg #: HPX20000-390231
    14
    14
    HPX2000-3909
    Terminal Block with Connnector
    Product #:
    Mfg #: HPX2000-3909
    15
    15
    HPX20000-370006
    Transformer
    Product #:
    Mfg #: HPX20000-370006
