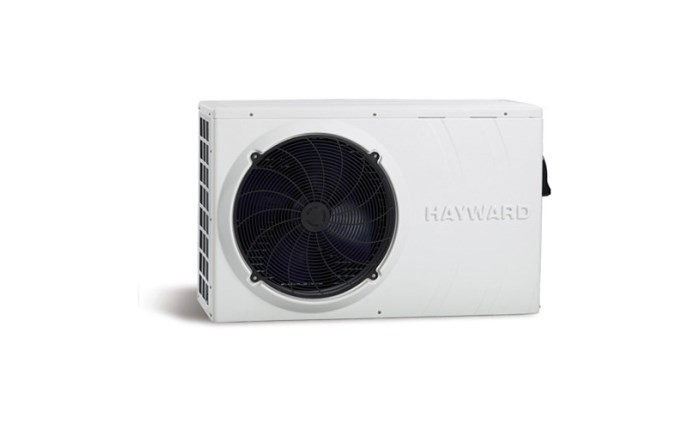

Hayward HeatPro® HP50HA Heat Pump; 2.68 kW, 50K BTU, 208/230V, 60Hz
EA
Description
Hayward HeatPro® HP50HA Heat Pump; 2.68 kW, 50K BTU, 208/230V, 60Hz provides the perfect pool water temperature to enhance the enjoyment of your pool throughout the swimming season. It is an ideal addition for your pool and is the most efficient way to provide the supreme water temperature for
Documents
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationAbove Ground, Inground, Pool
- Shipping Dimensions44 x 19 x 27.5 inch
- BTU Output47000
- ChannelNone
- ColorWhite, Black
- Commercial, Residential, or ProfessionalCommercial, Residential
- Compressor TypeRotary
- Control TypeElectronic Thermostat
- Each Product Weight158 pound
- Flow Rate Max25 gal/min
- Flow Rate Min15 gal/min
- Frequency Rating (Hz)60
- Green or Energy Efficient ProductTrue
- Heat Exchanger MaterialTitanium
- Master Carton Quantity1
- Min Circuit Ampacity12 amperage
- Minimum Sell Quantity1
- Voltage208V, 230V
- Warranty - AdditionalParts - 2 year, Labor - 1 year, Compressor - 5 year, Heat Exchanger - 10 year
- Warranty - General1 years
- Water Connection 11.5 inch
- Water Connection 1 FITBarb
- UPC Code0610377240444
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

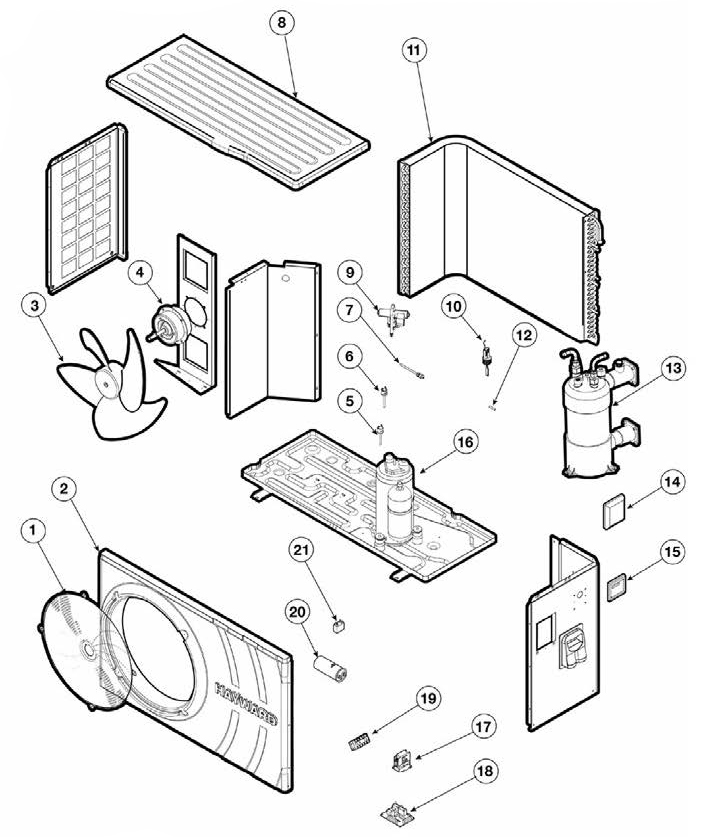

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
HPX20000-220188
HAY-151-3230
HPX20000-220188 FAN NET
Product #: HAY-151-3230
Mfg #: HPX20000-220188
2
2
HPX32012-220044
HAY-151-3371
HPX32012-220044 FRONT PANEL
Product #: HAY-151-3371
Mfg #: HPX32012-220044
3
3
HPX3500-2701
HAY-151-3234
HPX3500-2701 AXIAL FAN
Product #: HAY-151-3234
Mfg #: HPX3500-2701
4
4
HPX20000-330124
HAY-151-3377
HPX20000-330124 FAN MOTOR
Product #: HAY-151-3377
Mfg #: HPX20000-330124
5
5
HPX2000-3603
HAY-151-3224
HPX2000-3603 LOW PRESSURE SWITCH
Product #: HAY-151-3224
Mfg #: HPX2000-3603
6
6
HPX2001-3605
HAY-151-3225
HPX2001-3605 HIGH PRESSURE SWITCH
Product #: HAY-151-3225
Mfg #: HPX2001-3605
7
7
HPX20000-140153
HAY-151-3210
HPX2000-140153 HP50HA NEEDLE VALVE
Product #: HAY-151-3210
Mfg #: HPX20000-140153
8
8
HPX32012-220045
HAY-151-3317
HPX32012-220045 COVER
Product #: HAY-151-3317
Mfg #: HPX32012-220045
9
9
HPX2001-1418
HAY-151-3287
HPX2001-1418 4-WAY VALVE
Product #: HAY-151-3287
Mfg #: HPX2001-1418
10
10
HPX20000-360005
HAY-151-3256
HPX20000-360005 WATER FLOW SWICH
Product #: HAY-151-3256
Mfg #: HPX20000-360005
11
11
HPX32012-120031
Evaporator
Product #:
Mfg #: HPX32012-120031
12
12
HPX2000-3242
HAY-151-3203
HPX2000-3242 TEMPERATURE SENSOR
Product #: HAY-151-3203
Mfg #: HPX2000-3242
13
13
HPX32012-120014
HAY-151-3419
HPX32012-120014 TITANIUM HEAT EXCHANGER
Product #: HAY-151-3419
Mfg #: HPX32012-120014
14
14
HPX2000-2111
HAY-151-3231
Product #: HAY-151-3231
Mfg #: HPX2000-2111
15
15
HPX95005-310188
HAY-151-1456
Product #: HAY-151-1456
Mfg #: HPX95005-310188
