Raypak

Hi Delta Natural Gas Heater 500K BTU with Cal Code

Product #:RAY-15-0001

Mfg. Part #:100-10006498

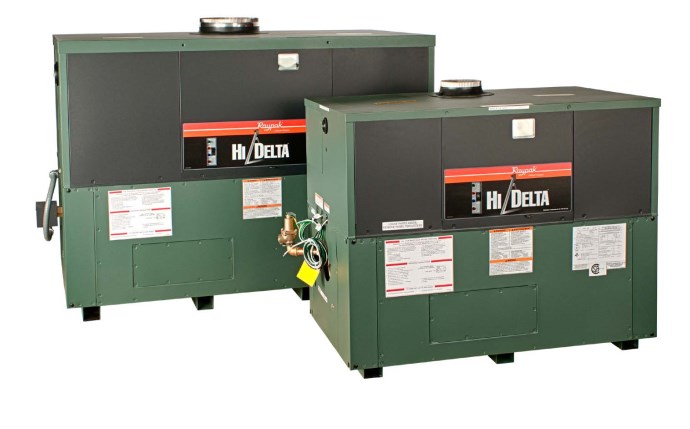

Raypak Hi Delta 100-10006498 Natural Gas Heater 500K BTU with Cal Code

Raypak

Hi Delta Natural Gas Heater 500K BTU with Cal Code

Product #:RAY-15-0001

Mfg. Part #:100-10006498

EA

Description

Raypak’s Hi Delta® is easy to install, operate and service. The Hi Delta has a patented burner with an innovative design that provides an optimized air-gas pathway for complete combustion. This makes the Hi Delta® the most adaptable sealed-combustion heater on the market today. The touch panel display on the Hi Delta® includes onboard diagnostics. In the event of any system problems, technicians can quickly review the fault history of the unit.

The Hi Delta® product family covers the full spectrum of both indoor and outdoor applications including pool and spa heating, apartments complexes, gyms, schools, day spas, aquatic centers, hotels, and resorts. When installed indoors, the Hi Delta’s versatility is revealed via smaller vent diameters, direct-venting capability, and the convenience of stacking to decrease the footprint for multiple units

Branch Availability

content loaded

Specifications

  • BrandRaypak
  • ApplicationPool, Spa
  • Shipping Dimensions25 x 50 x 35 inch
  • BTU Output500 British thermal unit
  • ChannelNone
  • ColorGreen
  • Commercial, Residential, or ProfessionalCommercial
  • Each Product Weight584 pound
  • FinishStandard
  • Flow Rate Max90 gal/min
  • Fuel TypeNatural Gas
  • Minimum Sell Quantity1
  • PhaseSingle
  • Thermal Efficiency83
  • Warranty - AdditionalParts - 1 year, Labor - 1 year

WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

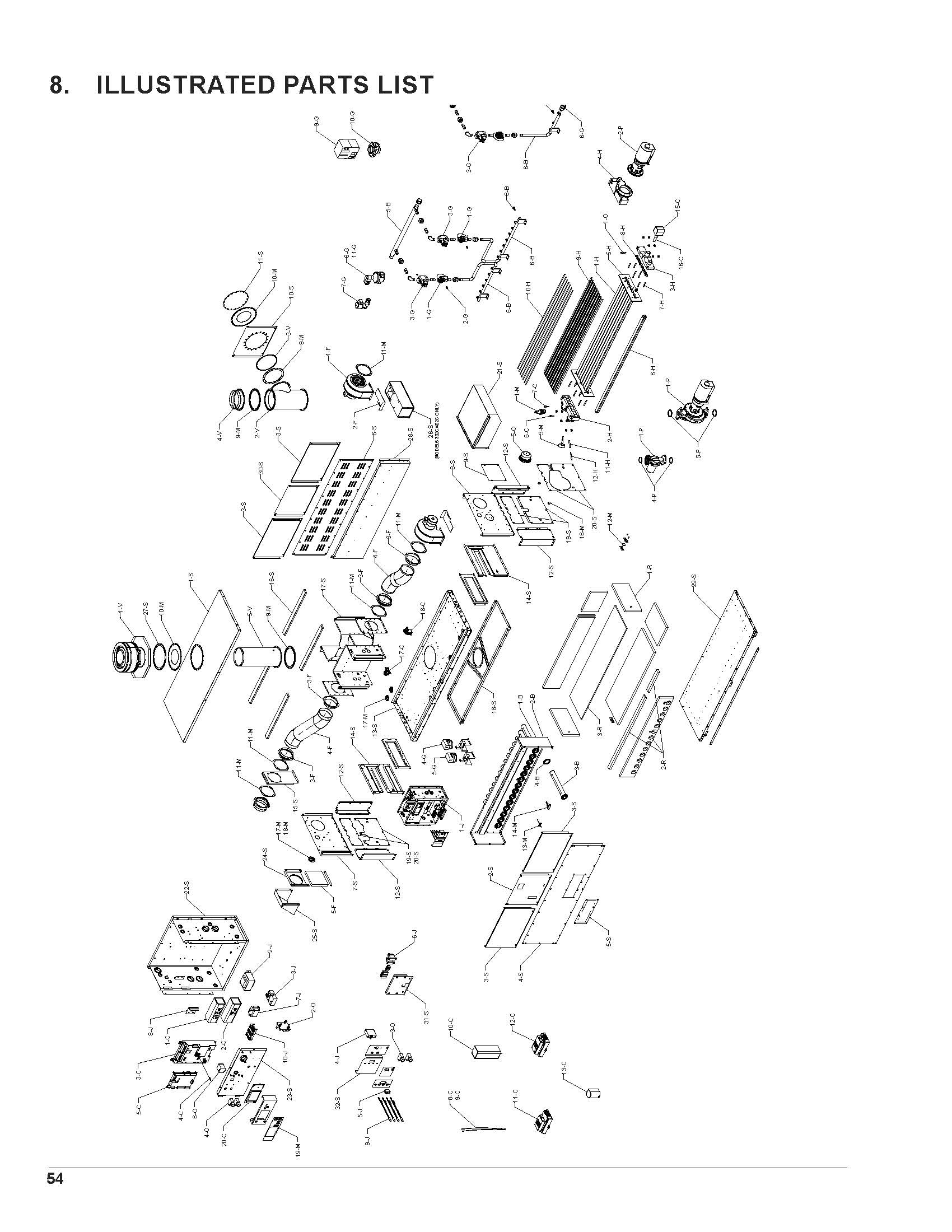

Parts & Schematics

content loaded
Mfg #
Product #
Description
Notes

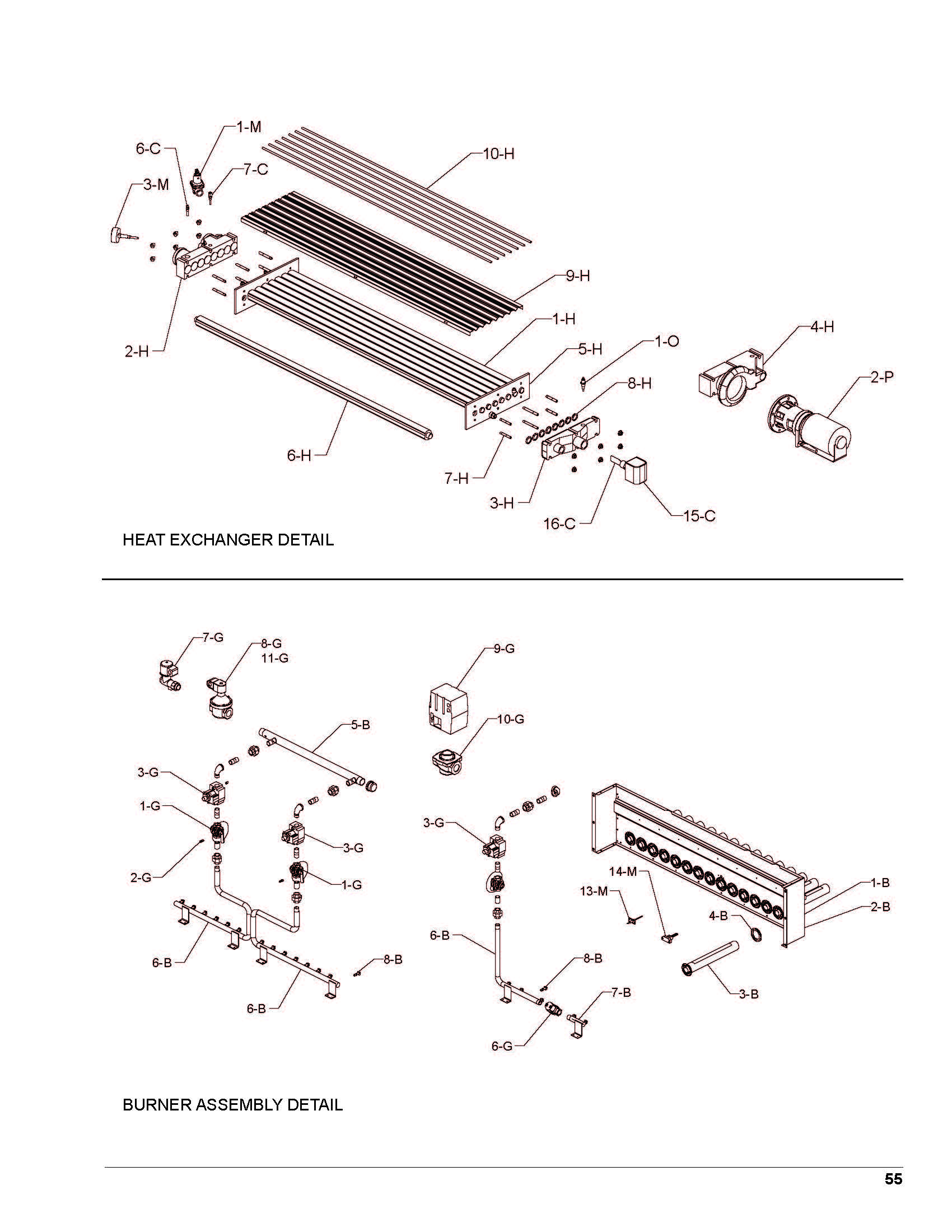

1-B
1-B
009719F
Burner Assy w/Burners
Product #:
Mfg #: 009719F
2-B
2-B
009725F
Burner Mounting Assy
Product #:
Mfg #: 009725F
3-B
3-B
007442F
RAY-151-1901
Product #: RAY-151-1901
Mfg #: 007442F
4-B
4-B
007443F
RAY-151-8899
Product #: RAY-151-8899
Mfg #: 007443F
5-B
5-B
007444F
Manifold Upper
Product #:
Mfg #: 007444F
6-B
6-B
007448F
Manifold Lower
Product #:
Mfg #: 007448F
8-B
8-B
351414
Natural Gas 1.9 mm
Product #:
Mfg #: 351414
Notes:
QTY: 10
8-B
8-B
351640
Natural Gas #44 (Low Gas Pressure)
Product #:
Mfg #: 351640
Notes:
QTY: 10
8-B
8-B
100-10000649
RAY-151-0273
Product #: RAY-151-0273
Mfg #: 100-10000649
Notes:
QTY: 10

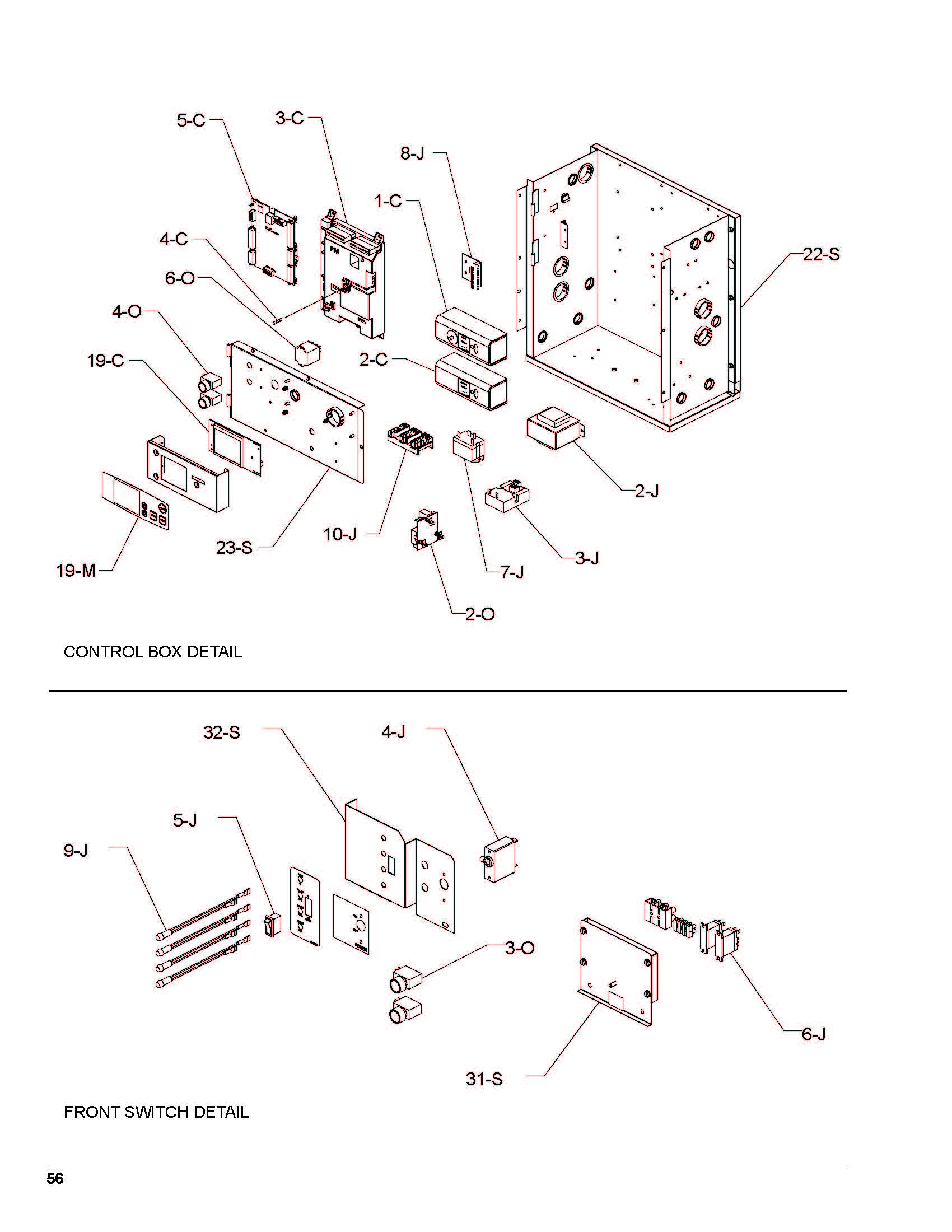

1-C
1-C
007144F
RAY-151-1330
Product #: RAY-151-1330
Mfg #: 007144F
1-C
1-C
008081F
Manual-Reset Adjustable High Limit 200�F Max
Product #:
Mfg #: 008081F
1-C
1-C
009554F
RAY-151-1483
Product #: RAY-151-1483
Mfg #: 009554F
2-C
2-C
007141F
Auto-Reset Adjustable High Limit 240�F Max
Product #:
Mfg #: 007141F
2-C
2-C
012546F
Auto-Reset Adjustable High Limit 200�F Max
Product #:
Mfg #: 012546F
2-C
2-C
006445F
Auto-Reset Adjustable High Limit 180�F Max
Product #:
Mfg #: 006445F
