Hayward® HydraPure® HYDRAPURE Dual Voltage Ozone Sanitizer UV03 120V
Description
Hayward® HydraPure® HYDRAPURE Dual Voltage Ozone Sanitizer UV03 120V offers an advanced oxidation process (AOP) combines UV and ozone to form hydroxyl radicals. Together these three sanitizers destroy 99.9% of chlorine-resistant bacteria and viruses.
Documents
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationPool
- Shipping Dimensions20 x 21 x 30 inch
- ChannelNone
- ColorTan
- Commercial, Residential, or ProfessionalProfessional, Residential
- Each Product Weight47 pound
- Flow Rate Max120 gal/min
- Flow Rate Min10 gal/min
- Minimum Sell Quantity1
- Pressure Rating Max50 pounds per square inch
- Voltage120V
- Wattage151 watt
- UPC Code0610377444644
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

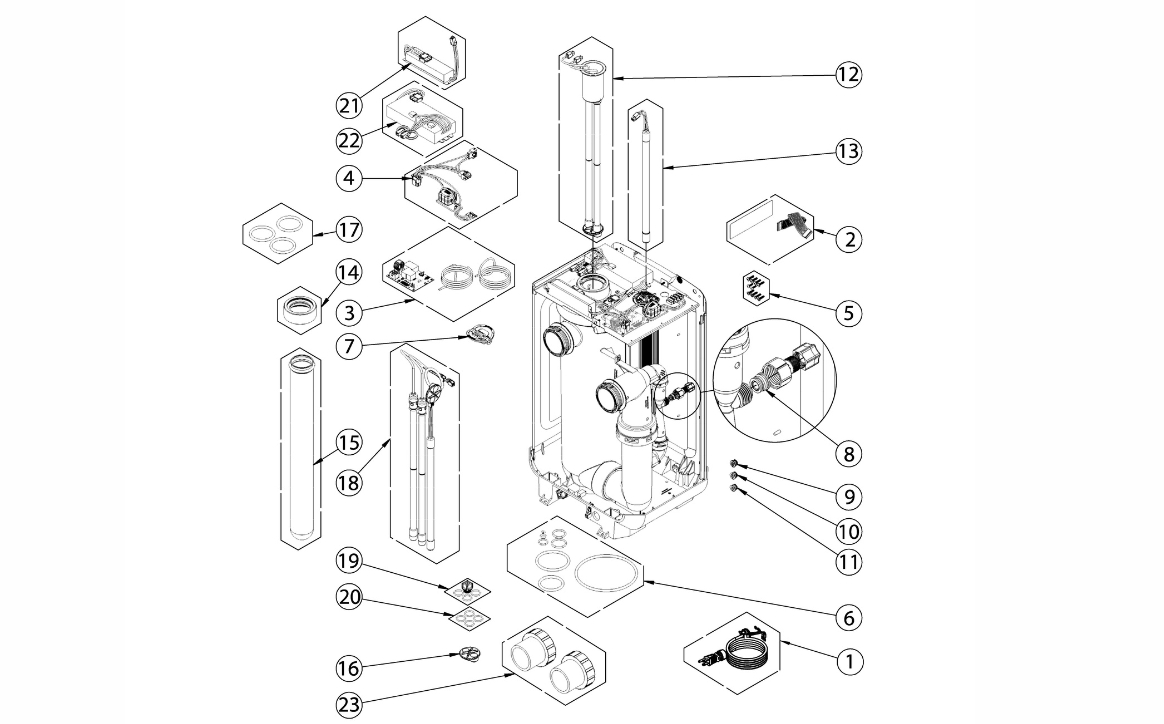

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
HYDRACORDKIT
KIT, CONVERSION, 120V CORDED HYDRAPURE
Product #:
Mfg #: HYDRACORDKIT
2
2
HYDRAMEMBRANE
REPLACEMENT, MEMBRANE SW & CABLE
Product #:
Mfg #: HYDRAMEMBRANE
3
3
HYDRAPCBA
BOARD W/TUBES & SENSOR
Product #:
Mfg #: HYDRAPCBA
4
4
HYDRAHARNESS
WIRE HARNESS
Product #:
Mfg #: HYDRAHARNESS
5
5
HYDRASCREWPK
SCREW PACK REPLACEMENTS
Product #:
Mfg #: HYDRASCREWPK
6
6
HYDRAORINGS
KIT, ORINGS
Product #:
Mfg #: HYDRAORINGS
7
7
HYDRACHKVLVBP
BYPASS VALVE
Product #:
Mfg #: HYDRACHKVLVBP
8
8
HYDRACHKVLVOEM
INLET CHECK VALVE OEM
Product #:
Mfg #: HYDRACHKVLVOEM
9
9
HYDRACHKVLV2
INLET CHECK VALVE 2LB
Product #:
Mfg #: HYDRACHKVLV2
10
10
HYDRACHKVLV3
INLET CHECK VALVE 3LB
Product #:
Mfg #: HYDRACHKVLV3
11
11
HYDRACHKVLV4
INLET CHECK VALVE 4LB
Product #:
Mfg #: HYDRACHKVLV4
12
12
005-422-9015-00
KIT, REPLACEMENT, 2 LAMP
Product #:
Mfg #: 005-422-9015-00
13
13
005-952-1230-00
LAMP, 1PC, 03
Product #:
Mfg #: 005-952-1230-00
14
14
005-422-5102-00
SEALING ASSY, QUARTZ TUBE
Product #:
Mfg #: 005-422-5102-00
15
15
005-422-2009-09
QUARTZ TUBE W/ SEAL KIT
Product #:
Mfg #: 005-422-2009-09
