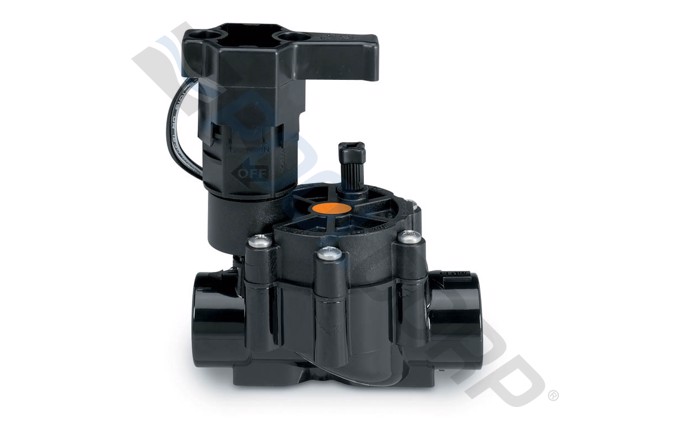

Rain Bird X12110 LFV100 1" Low Flow Drip Irrigation Valve
Description
The LFV Series are the only valves in the industry made specifically for drip irrigation systems, the unique patented design of the LFV allows it to effectively handle particles at low flow rates. These valves contain all of the features of reliable Rain Bird DV valves, coupled with a unique diaphragm design that allows particles to pass through at extremely low flow rates, preventing weeping of the valve.
Documents
Branch Availability
content loaded
Specifications
- BrandRain Bird
- ApplicationOutdoor
- Shipping Dimensions1 x 0.77 x 0.75 inch
- ChannelConstruction Channel
- Each Product Weight0.93 pound
- Master Carton Quantity12
- Minimum Sell Quantity1
- Pallet Quantity432
- Pressure Rating Max150 pounds per square inch
- Pressure Rating Min15 pounds per square inch
- Valve Flow Max10 gal/min
- Valve Flow Min0.2 gal/min
- UPC Code753810017811
