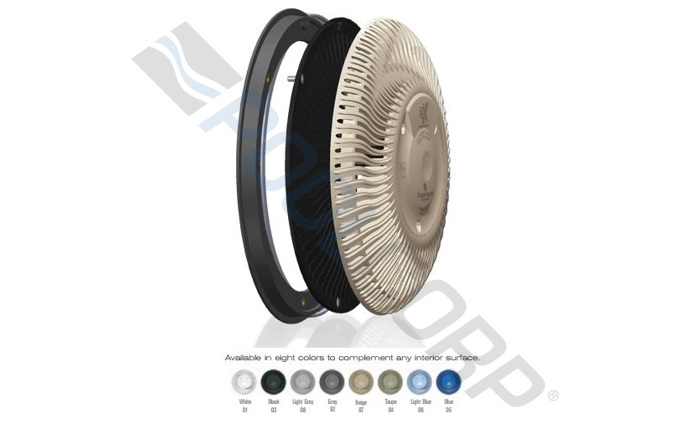

Paramount SDX2 004-162-2212-08 Light Grey High Flow Safety Drain

Paramount

Light Grey SDX2 High Flow Safety Drain

Product #:PMT-25-3015

Mfg. Part #:004-162-2212-08

Description

Paramount SDX2 004-162-2212-08 Light Grey High Flow Safety Drain. SDX2 is a high flow suction outlet suitable for use as a wall fitting, or as a floor fitting when debris removal is not a concern. Available for concrete, vinyl and fiberglass pools, SDX2 performs at a very high flow rate while operating at one of the lowest velocity ratings in the industry. SDX2 boasts a flow rating of 188 gpm on the floor and 154 gpm on the wall.

Documents

Feature Bullets

  • No need to chisel out a sump to meet the1.5 times the pipe diameter sump depth requirement.
  • Approved as a bulkhead fitting so the safety is in the cover and plate
  • Patented "ribbed" design achieves high flow with sixty "mini" drains
  • Suction doesn’t transfer if one area is covered
  • Dome shape to prevent a seal by a swimmer
  • Anti-vortex shield blocks contact with direct suction
  • Stainless steel security screws
  • Secondary support plate secured to protect the sump and fittings

    • Branch Availability

    content loaded

    Specifications

    • BrandParamount
    • ApplicationPool
    • Shipping Dimensions11 x 11 x 6.25 inch
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight3.95 pound
    • For Use WithConcrete Pools
    • Master Carton Quantity12
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Pool or Spa TypeConcrete
    • For Use WithConcrete Pools

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Parts & Schematics

    There are no parts or schematics available.
