Century

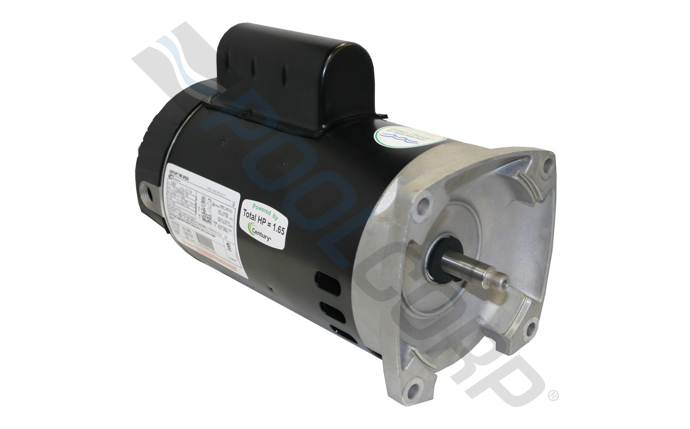

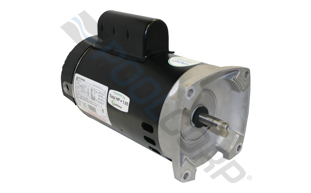

ODP Square Flange Pool & Spa Pump Motor 1.0/0.12HP 230V

Product #:MGT-60-2982

Mfg. Part #:B2982


Century® B2982 ODP Square Flange Pool & Spa Pump Motor; 1.0/.12HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, Y56Y Frame

Century

ODP Square Flange Pool & Spa Pump Motor 1.0/0.12HP 230V

Product #:MGT-60-2982

Mfg. Part #:B2982

Description

The ODP Square Flange Pool and Spa Motor is a switchless, high service factor threaded shaft motor. Century® is an established and respected motor brand with reliable and dependable products for HVAC, pool & spa, and commercial and industrial applications. For nearly 80 years, the Century brand has delivered cutting-edge, high-quality, and energy-efficient solutions to customers all over the world. Century brings cutting edge, high quality and energy efficient solutions to customers all over the world. For your most relaxing applications, Century® pool pump motors have you covered to ensure your summer and leisure activities stay up and running.

Branch Availability

content loaded

Specifications

  • BrandCentury
  • Ambient Temperature50 degrees Celsius
  • Shipping Dimensions21 x 11 x 9.5 inch
  • Amps High Speed7.4
  • Amps Low Speed1.4
  • ApplicationAbove Ground, Pool, Spa
  • Bearing TypeSealed Ball
  • ColorBlack
  • Duty CycleContinuous
  • Each Product Weight23.05 pound
  • Efficiency GroupHigh
  • Frequency Rating (Hz)60
  • Horsepower1 horse power
  • Insulation ClassF
  • Master Carton Quantity1
  • Minimum Sell Quantity1
  • Motor Enclosure TypeOpen Drip Proof
  • Motor Frame Size56Y
  • Motor Shaft RotationCounterclockwise Pulley End
  • Motor Speed2-Speed
  • Motor Thermal ProtectionAutomatic Reset
  • Pallet Quantity30
  • PhaseSingle
  • RPMs Max3450
  • RPMs Min1725
  • Service Factor1.65
  • Shaft DesignThreaded
  • Shaft Diameter0.625 inch
  • Shaft Length1.875 inch
  • Shaft Material303 Stainless Steel
  • Standards ApprovalsCSA Certified
  • Voltage230V
  • Diameter6.5 inch
  • Flange TypeSquare
  • Frame MaterialRolled Steel
  • Green or Energy Efficient ProductTrue
  • Motor Capacitor TypeStart, Run
  • Motor RatingFull-Rated
  • Thrust HP1.65
  • UPC Code786674012340
