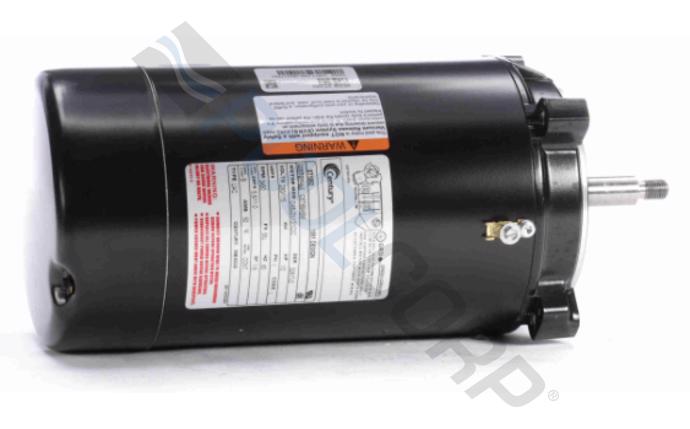

Century® ST1052 Two-Compartment Pool Filter Motor; 0.5 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft
Description
This ODP Threaded Pool Filter Motor 0.5HP 115/230 is a replacement part that can be relied upon when it matters the most. This motor is made from high-quality parts and materials for long-term performance.
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions17 x 9.25 x 9.5 inch
- Amps High Speed11
- Amps Low Speed5.5
- ApplicationPool
- Bearing TypeSealed Ball
- ColorBlack
- Duty CycleContinuous
- Each Product Weight17.85 pound
- Efficiency GroupStandard
- Frequency Rating (Hz)60
- Horsepower0.5 horse power
- Insulation ClassB
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity40
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1.6
- Shaft Design7/16 Threaded
- Shaft Diameter0.625 inch
- Shaft Length2.5625 inch
- Shaft Material303 Stainless Steel
- Standards ApprovalsCSA Certified
- Voltage115V, 230V
- Commercial, Residential, or ProfessionalResidential
- Diameter6.5 inch
- Flange MaterialAluminum
- Frame MaterialRolled Steel
- Motor Capacitor TypeStart
- UPC Code786674031761
