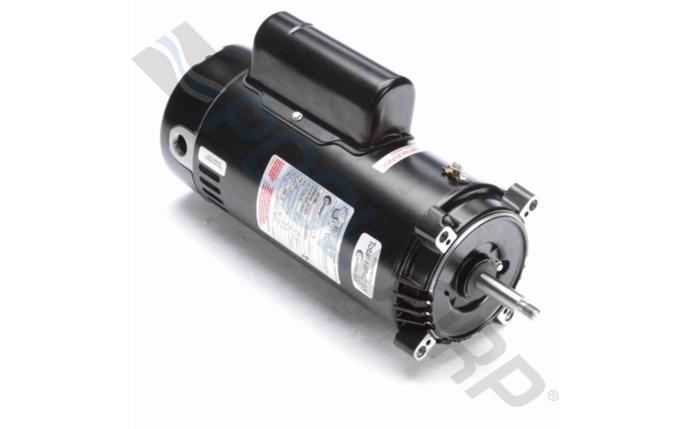

Century® UST1252 Two-Compartment Pool Filter Motor; 2.5 HP, 3450 RPM, 208-230 V, 56J, Threaded Shaft
Description
This ODP Threaded Pool Filter Motor 2.5HP 208-230V is a replacement part that can be relied upon when it matters the most. This motor is made from high-quality parts and materials for long-term performance.
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions26.75 x 10 x 11.75 inch
- Amps High Speed12.6
- Amps Low Speed11.4
- ApplicationPool
- Bearing TypeSealed Ball
- ColorBlack
- Duty CycleContinuous
- Each Product Weight32 pound
- Efficiency GroupHigh
- Frequency Rating (Hz)60
- Horsepower2.5 horse power
- Insulation ClassB
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity30
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1.06
- Shaft Design7/16 Threaded
- Shaft Diameter0.625 inch
- Shaft Length2.5625 inch
- Shaft Material303 Stainless Steel
- Standards ApprovalsCSA Certified
- Voltage208V, 230V
- ChannelNone
- Commercial, Residential, or ProfessionalResidential
- Diameter6.5 inch
- Flange MaterialAluminum
- Flange TypeRound
- Frame MaterialRolled Steel
- Green or Energy Efficient ProductTrue
- Motor Capacitor TypeStart, Run
- Motor RatingUp-Rated
- Thrust HP2.75
- UPC Code786674033369
