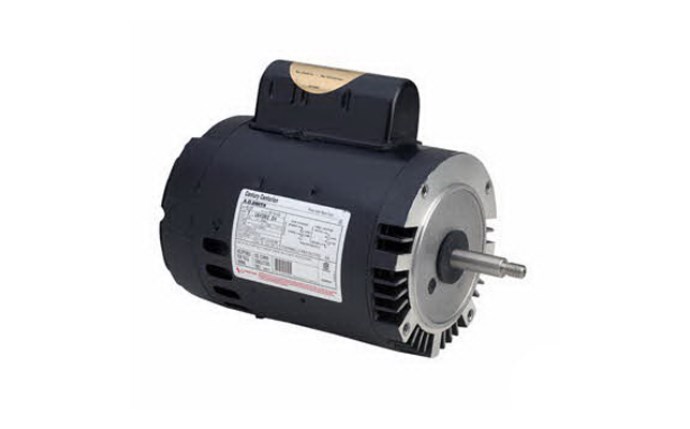

Century® B966 2 Speed Pool and Spa Pump Motor; 3/0.38HP, 3450/1725 RPM, 230V, 56J, Threaded Shaft
Description
The ODP Thru-Bolt Pool and Spa Motor has 12 & 3 o'clock conduit entries. Century® is an established and respected motor brand with reliable and dependable products for HVAC, pool & spa, and commercial and industrial applications. For nearly 80 years, the Century brand has delivered cutting-edge, high-quality, and energy-efficient solutions to customers all over the world. Century brings cutting edge, high quality and energy efficient solutions to customers all over the world. For your most relaxing applications, Century® pool pump motors have you covered to ensure your summer and leisure activities stay up and running.
Documents
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature40 degrees Celsius
- Shipping Dimensions18.88 x 9.38 x 11 inch
- Amps High Speed13.8
- Amps Low Speed4
- ApplicationPool
- Bearing TypeSealed Ball
- ColorBlack
- Duty CycleContinuous
- Each Product Weight40.92 pound
- Efficiency GroupHigh
- Frequency Rating (Hz)60
- Horsepower3 horse power
- Insulation ClassB
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed2-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity30
- PhaseSingle
- RPMs Max3450
- RPMs Min1725
- Service Factor1.15
- Shaft DesignThreaded
- Shaft Diameter0.625 inch
- Shaft Length2.625 inch
- Shaft Material303 Stainless Steel
- Standards ApprovalsCSA Certified
- Voltage230V
- Commercial, Residential, or ProfessionalResidential
- Diameter6.5 inch
- Flange MaterialAluminum
- Flange TypeRound
- Frame MaterialRolled Steel
- Green or Energy Efficient ProductTrue
- Motor RatingFull-Rated
- Thrust HP3.45
- UPC Code663001372776
