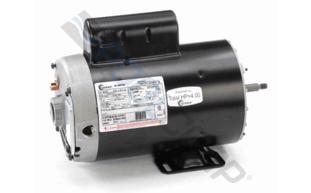

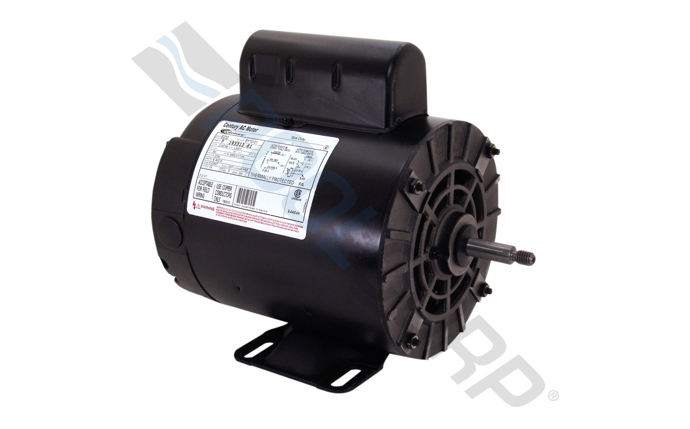

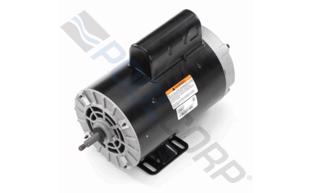

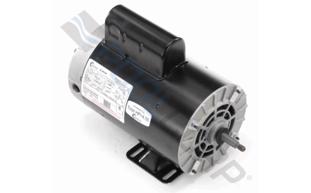

Century® B236 2 Speed Replacement Waterway Spa Motor; 5HP, 3450/1725 RPM, 230V, 56Y, Threaded Shaft
Description
The ODP Thru-Bolt Pool and Spa Motor has 12 & 3 o'clock conduit entries. Century® is an established and respected motor brand with reliable and dependable products for HVAC, pool & spa, and commercial and industrial applications. For nearly 80 years, the Century brand has delivered cutting-edge, high-quality, and energy-efficient solutions to customers all over the world. Century brings cutting edge, high quality and energy efficient solutions to customers all over the world. For your most relaxing applications, Century® pool pump motors have you covered to ensure your summer and leisure activities stay up and running.
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions18.5 x 9.5 x 11 inch
- Amps High Speed16.4
- Amps Low Speed4.8
- ApplicationAbove Ground, Pool, Spa
- Bearing TypeBall
- ColorBlack
- Duty CycleContinuous
- Each Product Weight40 pound
- Efficiency GroupStandard
- Frequency Rating (Hz)60
- Horsepower5 horse power
- Insulation ClassF
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed2-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity30
- PhaseSingle
- RPMs Max3450
- RPMs Min1725
- Shaft DesignThreaded
- Shaft Diameter0.5 inch
- Shaft Length2.375 inch
- Shaft Material303 Stainless Steel
- Standards ApprovalsCSA Certified
- Voltage230V
- Diameter6.5 inch
- Flange MaterialAluminum
- Flange TypeRound
- Frame MaterialRolled Steel
- Green or Energy Efficient ProductTrue
- Shaft Height3.5 inch
- UPC Code663001650744
