Orka In Ground 1 Speed Pump 2HP 115/230V 60Hz
Product #:JAC-10-9887
Mfg. Part #:94028936
94028936 Orka In Ground 1 Speed Pump 2HP 115/230V 60Hz

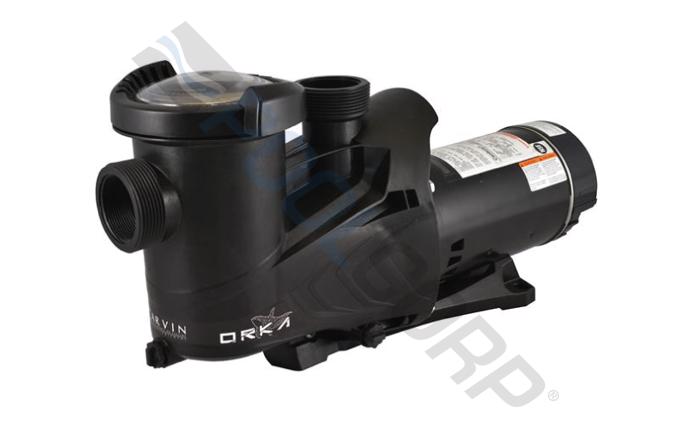

Orka In Ground 1 Speed Pump 2HP 115/230V 60Hz
Product #:JAC-10-9887
Mfg. Part #:94028936
Description
The Orka In Ground Pump ensures quiet leak free operation. The pump allows tool-free access to the strainer and pump internals. The heavy duty large capacity strainer basket ensures easy flow even when it's filled with leaves. The pump is easy to clean and maintain making it simple for you to keep your pool running with clean clear water.
Documents
Branch Availability
content loaded
Specifications
- Amps High Speed12.4
- Shipping Dimensions0 x 0 x 0 inch
- Amps Low Speed6.2
- ApplicationInground, Pool
- Connection Size 12 inch
- Connection Size 1 FITFNPT
- Each Product Weight0 pound
- Frequency Rating (Hz)60
- Horsepower2 horse power
- Includes2" Black Unions PVC, 1.5" Black Unions PVC
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Speed1-Speed
- Pallet Quantity1
- Product Height11.75 inch
- Product Weight31 pound
- Product Width23 inch
- Standards ApprovalscULus Certified
- Voltage115V, 230V
- Max Liquid Temperature104 degrees Fahrenheit
- Product Depth8 inch

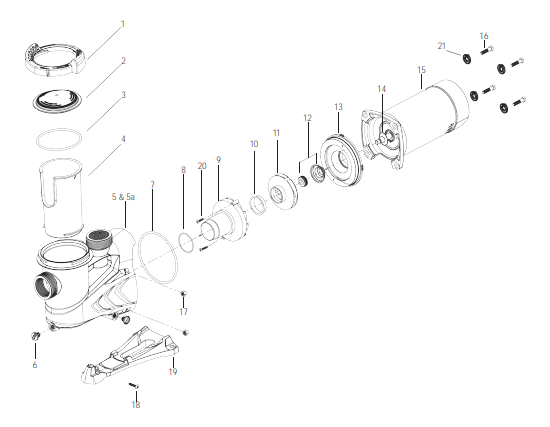

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
42-1679-70-R
Strainer Quarter-Turn Ringlok
Product #:
Mfg #: 42-1679-70-R
2
2
39-0789-03-R
Strainer Cover
Product #:
Mfg #: 39-0789-03-R
3
3
47-0352-41-R
Strainer O-ring
Product #:
Mfg #: 47-0352-41-R
4
4
16-1052-15-R
Strainer Basket
Product #:
Mfg #: 16-1052-15-R
5
5
16-1102-47-R
ORKA inground Strainer Pump Body 2’’
Product #:
Mfg #: 16-1102-47-R
5a
6
6
31-1609-06-R2
Drain Plug with O-ring ( 2 Per Bag)
Product #:
Mfg #: 31-1609-06-R2
7
7
47-0361-08-R
ORKA Strainer Body Main O-ring
Product #:
Mfg #: 47-0361-08-R
8
8
47-0214-06-R
Diffuser O-Ring
Product #:
Mfg #: 47-0214-06-R
9
9
06-0153-09-R
Diffuser 5’’ OD
Product #:
Mfg #: 06-0153-09-R
10
10
10-1462-07-R
Floating Eye Seal
Product #:
Mfg #: 10-1462-07-R
11
11
05-3936-08-R
Impeller for 3/4 hp motors
Product #:
Mfg #: 05-3936-08-R
11
11
05-3937-07-R
Impeller for 1 hp motors
Product #:
Mfg #: 05-3937-07-R
11
11
05-3939-05-R
Impeller for 1.5 hp motors
Product #:
Mfg #: 05-3939-05-R
11
11
05-3940-02-R
Impeller for 2 hp motors
Product #:
Mfg #: 05-3940-02-R
