Stenner Pumps

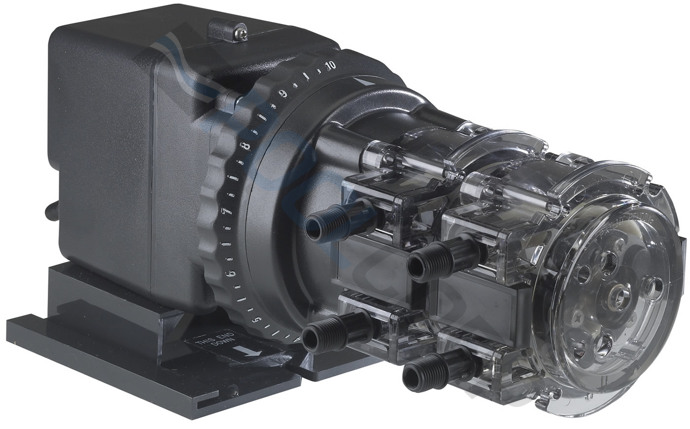

Classic 170DM5 Double Head Adjustable Output Pump 170GPD

Product #:GHS-45-816

Mfg. Part #:170JL5A1STAA


Stenner Pumps 170JL5A1STAA Classic 170DM5 Double Head Adjustable Rate 25PSI 170GPD 120V 60Hz .25" White Suction/Discharge

Stenner Pumps

Classic 170DM5 Double Head Adjustable Output Pump 170GPD

Product #:GHS-45-816

Mfg. Part #:170JL5A1STAA

Description

Classic series pump will dose solutions such as sodium hypochlorite, acid, polyphosphates, biocides for common water treatment applications that include disinfection, pH control, corrosion and scale control, oxidation and sanitization. This pump series provides twice the output for large commercial pool and aquatic facilities or water and Wastewater treatment plants. The pump can also inject two compatible solutions at the same ratio. The Classic Series double head adjustable pump is built the same way as the single head adjustable with the addition of another pump head that doubles the output

Feature Bullets

  • 3-point roller design assists in anti-siphon protection
  • Pump head requires no valves, allows for easy maintenance
  • Self priming against maximum working pressure, foot valve not required
  • Pump does not lose prime or vapor lock
  • Pumps off-gassing solutions and can run dry
  • Output volume is not affected by back pressure
  • Injection check valve included with models rated up to 100 psi (6.9 bar)
  • Easy and fast tube replacement without tools with the QuickPro® pump head
  • Pump tubes and pump heads interchange between models
  • The pump is built with three detachable components - the motor, feed rate control and the pump head that can be separated without tools
  • Branch Availability

    content loaded

    Specifications

    • BrandStenner Pumps
    • ApplicationPool
    • Shipping Dimensions17.5 x 8 x 9.25 inch
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight10 pound
    • Flow Rate Max170 gal/day
    • Flow Rate Min8.5 gal/day
    • Frequency Rating (Hz)60
    • IncludesAccessory Kit
    • Master Carton Quantity1
    • Maximum Suction Lift25 foot
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • Pressure Rating Max25 pounds per square inch
    • Pressure Rating Min0 pounds per square inch
    • RPM26
    • Standards ApprovalsCSA Certified, WQA Certified
    • Suction Size Inner Diameter0.25 inch
    • Temperature Rating Max125 degrees Fahrenheit
    • Temperature Rating Min125 degrees Fahrenheit
    • UPC Code840034703634

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

    Parts & Schematics

    There are no parts or schematics available.
