Century

Pool Pump 56J ODP Motor 2.75HP 208-230V 3600 RPM 1 Ph 60Hz

Product #:AOS-60-2737

Mfg. Part #:HST275

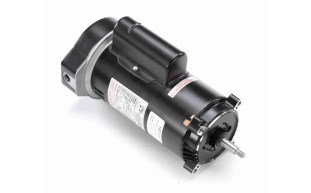

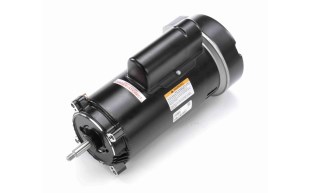

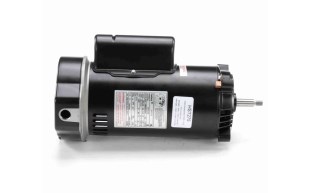

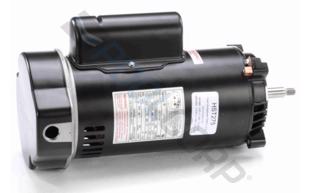

Century HST275 Pool Pump 56J ODP Motor 2.75HP 208-230V 3600 RPM 1 Ph 60Hz

Century

Pool Pump 56J ODP Motor 2.75HP 208-230V 3600 RPM 1 Ph 60Hz

Product #:AOS-60-2737

Mfg. Part #:HST275

Description

When it comes to durability, installer - friendly features, and overall ergonomics, no other replacement pump motor comes close to a superbly crafted Century HST275 Pool Pump 56J ODP Motor 2.75HP 208-230V 3600 RPM 1 Ph 60Hz. In addition to one of the most reliable switch and governor mechanisms in the industry and premium bearings on both the pump and lead ends of the motor, the innovative hybrid end frame design boasts a new PCB terminal board, voltage change device and a definitive shaft access path. The Centurion PRO design packs best-in-class features into a rugged, accessible layout that improves the installati on experience.

Branch Availability

content loaded

Specifications

  • BrandCentury
  • Ambient Temperature50 degrees Celsius
  • Shipping Dimensions18 x 11 x 9.25 inch
  • ApplicationPool
  • Bearing TypeSealed Ball
  • ColorBlack
  • Duty CycleContinuous
  • Each Product Weight33.05 pound
  • Frequency Rating (Hz)60
  • Horsepower2.75 horse power
  • Insulation ClassB
  • Master Carton Quantity1
  • Minimum Sell Quantity1
  • Motor Enclosure TypeOpen Drip Proof
  • Motor Frame Size56J
  • Motor Shaft RotationCounterclockwise Pulley End
  • Motor Speed1-Speed
  • Motor Thermal ProtectionAutomatic Reset
  • Pallet Quantity30
  • PhaseSingle
  • RPMs Max3450
  • RPMs Min3450
  • Service Factor1
  • Shaft DesignThreaded
  • Shaft Diameter0.625 inch
  • Shaft Material303 Stainless Steel
  • Standards ApprovalsCSA Certified
  • Voltage208V, 230V
  • Commercial, Residential, or ProfessionalResidential
  • Diameter6.5 inch
  • Motor Capacitor TypeStart, Run
  • UPC Code786674070241
