R408A Natural Gas Professional Digital Heater 0-2K' 399K BTU

Product #:RAY-15-3731

Mfg. Part #:013731

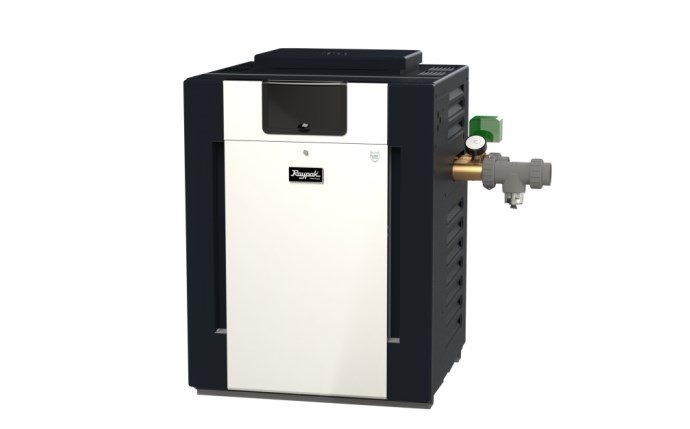

Raypak 013731 Professional Series ASME Digital Brass Pool Heater Natural Gas, #50 Burner, Cupro-Nickel Tubing

Raypak

R408A Natural Gas Professional Digital Heater 0-2K' 399K BTU

Product #:RAY-15-3731

Mfg. Part #:013731

EA

Description

Raypak Professional series pool heaters, designed specifically for commercial properties such as apartments, condos, hotels, motels, schools, parks, community and high-end private pools. It’s also the perfect heater for tough coastal weather conditions where salt air challenges durability.

Documents

Feature Bullets

  • Microprocessor - Control is more precise than mechanical systems. It controls temperatures for pool and spa settings and stores diagnostic information for service technicians
  • Stainless Steel - Is used liberally through-out the Professional series pool heater. Raypak spared no expense to ensure that any area that could be compromised by harsh environments would stand the test of time.
  • Heat Exchanger - With brass headers and cupronickel tubes for maximum protection against the toughest pool applications. Excellent for salt chlorine generated pools. ASME certified & National Board Registered
  • Burner Tray - Constructed entirely of stainless steel. Every detail has been looked at, down to every nut and bolt, and made of stainless steel. This burner tray is built to last
  • Condensation Protection - The Unitherm Governor system along with a spring loaded bypass to maintain the perfect flow through the heat exchanger
  • Spark-to-Pilot Ignition - The most reliable and safe ignition system in use today
  • Cupro-Nickel Finned-Tube Heat Exchanger - Is at the heart of the Raypak Professional series heater. The competition doesn’t stand a chance against its fat 0.065 tubing walls. Raypak also uses integral fin tube, meaning it’s all one piece of material
  • Wiring Sheath - Is standard construction on all exposed wiring. This helps prevent rodent damage and other associated issues that can damage the wiring. Not to mention it looks very clean and tight.
  • Flow Switch and T&P - Are standard equipment on the Raypak Professional. This makes the unit 50 state ASME compliant right out of the box. Also, having a flow switch eliminates pressure issues from elevated pools.
  • Robust Burner - Design is Raypak’s specialty. The Professional series heater can withstand fluctuating and varying gas pressures. The burner is self-adjusting and always yields a perfect flame

    • Branch Availability

    content loaded

    Specifications

    • BrandRaypak
    • ApplicationPool, Spa
    • Shipping Dimensions40 x 29 x 32.69 inch
    • Burner Orifice Size#50
    • Cabinet Depth28 inch
    • Cabinet Height38 inch
    • Cabinet Width29 inch
    • Commercial, Residential, or ProfessionalCommercial, Professional
    • Control TypeDigital
    • Each Product Weight274 pound
    • Elevation Max2000 foot
    • Elevation Min0 foot
    • Flow Rate Max125 gal/min
    • Flow Rate Min125 gal/min
    • Flue Diameter9 inch
    • Frequency Rating (Hz)60
    • Fuel TypeNatural Gas
    • Gas Connection0.75 inch
    • Gas Connection FITNPT
    • Header MaterialBrass
    • Indoor Drafthood64.5 inch
    • Minimum J12.125 inch
    • Minimum Sell Quantity1
    • PhaseSingle
    • Stackless Outdoor Top40 inch
    • Standards ApprovalsASME Certified
    • Tubing MaterialCupro Nickel
    • Warranty - AdditionalParts - 3 year, Labor - 3 year
    • Warranty - General3 years
    • UPC Code840891029731

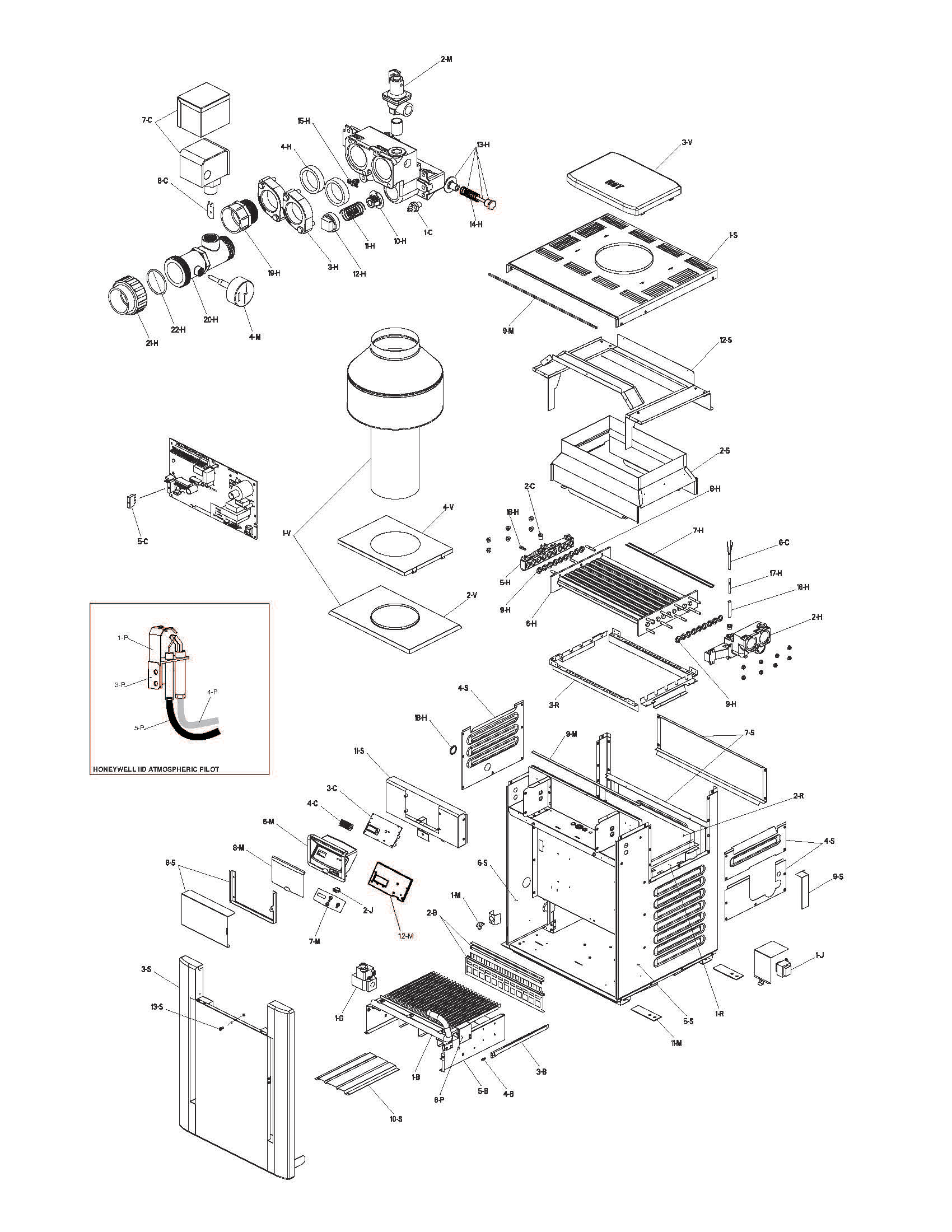

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1-B
    1-B
    013796F
    Burner Tray w/Burners (Sea Level)
    Product #:
    Mfg #: 013796F
    1-B
    1-B
    013799F
    Burner Tray w/o Burners (Sea Level)
    Product #:
    Mfg #: 013799F
    1-B
    1-B
    013801F
    Burner Tray w/Gas Valve Nat
    Product #:
    Mfg #: 013801F
    1-B
    1-B
    013803F
    Burner Tray w/Gas Valve Pro
    Product #:
    Mfg #: 013803F
    2-B
    2-B
    013805F
    Burner Spacer/Hold Down Kit
    Product #:
    Mfg #: 013805F
    3-B
    3-B
    301210
    RAY-151-3586
    301210 SS BURNER
    Product #: RAY-151-3586
    Mfg #: 301210
    4-B
    4-B
    350079F
    RAY-151-1213
    Natural Gas Burner Orifice for Pool Heater, #50
    Product #: RAY-151-1213
    Mfg #: 350079F
    4-B
    4-B
    350083F
    RAY-151-1215
    Natural Gas Burner Orifice, #57
    Product #: RAY-151-1215
    Mfg #: 350083F
    5-B
    5-B
    013807F
    Burner Tray w/o Manifold w/o burners
    Product #:
    Mfg #: 013807F
    1-C
    1-C
    600892B
    RAY-151-3609
    1/4" - 18 MPT 135°F Auto Reset High Limit Kit
    Product #: RAY-151-3609
    Mfg #: 600892B
    2-C
    2-C
    600893B
    RAY-151-3610
    1/4" - 18 MPT 140°F Auto Reset High Limit Kit
    Product #: RAY-151-3610
    Mfg #: 600893B
    3-C
    3-C
    013464F
    RAY-151-3724
    013464F IID PC BOARD CONTROLLER (AFTER 11/2003)
    Product #: RAY-151-3724
    Mfg #: 013464F
    4-C
    4-C
    013640F
    RAY-151-3850
    013640F LCD DISPLAY MODULE
    Product #: RAY-151-3850
    Mfg #: 013640F
    5-C
    5-C
    013733F
    RAY-151-3733
    013733F 5A 206A- 406A FUSE
    Product #: RAY-151-3733
    Mfg #: 013733F
    6-C
    6-C
    009577F
    RAY-151-1208
    Three Wire Temperature Sensor
    Product #: RAY-151-1208
    Mfg #: 009577F
