Waterway
Renegade Standard 1-Piece Fiberglass Only In-Ground Skimmer
Product #:WWP-25-8610
Mfg. Part #:540-8610
Waterway Renegade 540-8610 Standard 1-Piece Fiberglass Only In-Ground Skimmer
Waterway
Renegade Standard 1-Piece Fiberglass Only In-Ground Skimmer
Product #:WWP-25-8610
Mfg. Part #:540-8610
Description
The Waterway 540-8610 is a Renegade Standard 1-Piece Fiberglass Only In-Ground Skimmer with a 2 Inch opening. It is White. Pool Skimmers are designed to take in water from the surface of the pool, and run it through the filtration system, keeping it clean and pure. It is a genuine Waterway product.
Documents
No documents available
Branch Availability
content loaded
Specifications
- BrandWaterway
- ApplicationInground, Pool
- ColorWhite
- Connection Size 12 inch
- Connection Size 1 FITSocket
- Connection TypeSocket
- Cover ShapeSquare
- Each Product Weight14.49 pound
- Flow Rate Measure A75 gal/min
- IncludesLock-down vacuum plate; 2 extension collars
- Master Carton Quantity1
- MaterialFiberglass, PVC or Polyvinyl Chloride
- Minimum Sell Quantity1
- Pallet Quantity1
- Optional AccessoriesFloat valve, skimmer test kit
- UPC Code806105325570

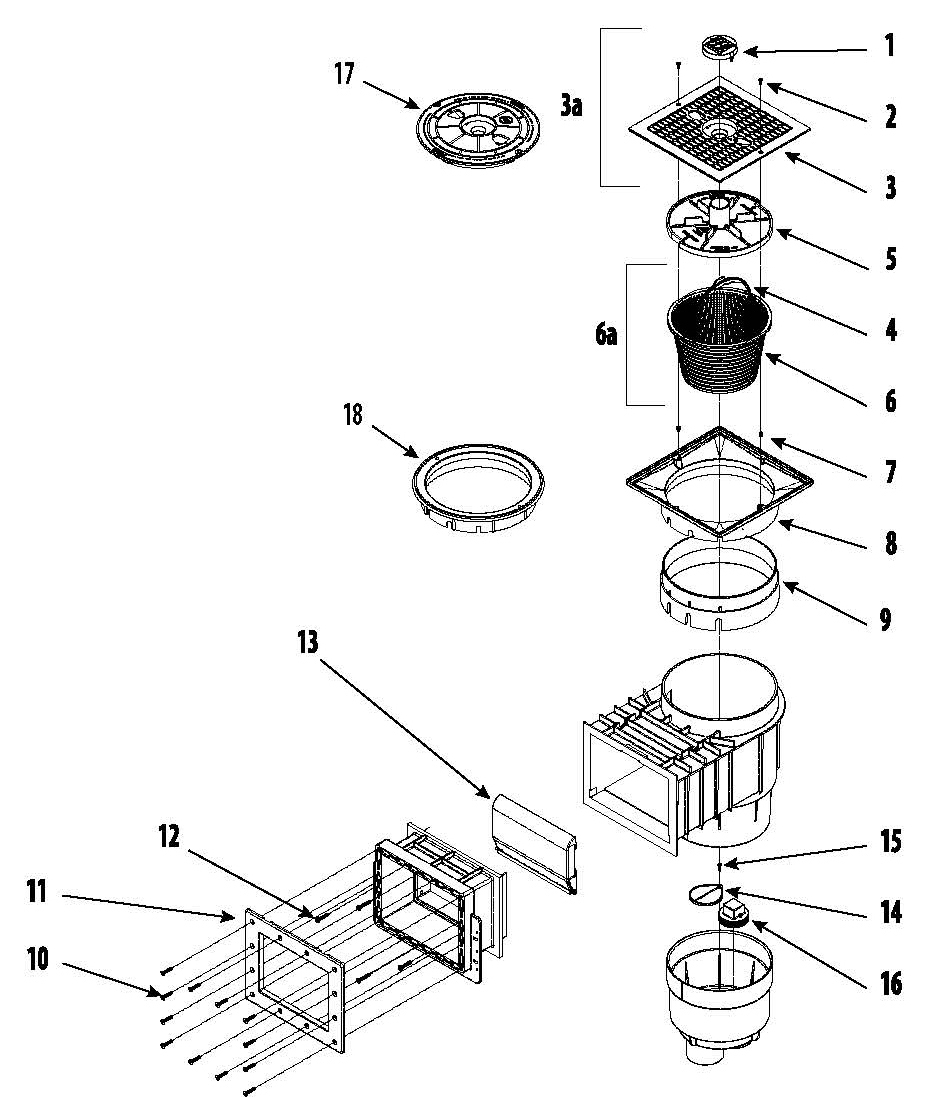

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
519-6460WWB
Logo Lid Insert
Product #:
Mfg #: 519-6460WWB
2
2
819-0005B
Screw #8-32 x 7/16 Phil Pan Head (2 required)
Product #:
Mfg #: 819-0005B
3
3
519-9500B
Square Lid
Product #:
Mfg #: 519-9500B
3a
3a
540-6490WWB
Square Lid with Logo Insert
Product #:
Mfg #: 540-6490WWB
4
4
519-3250B
Basket Handle
Product #:
Mfg #: 519-3250B
5
5
519-6480B
Vacuum Plate - Twist-Lock (2013 & older)
Product #:
Mfg #: 519-6480B
5a
5a
519-6480-R1B
New Vacuum Plate (2014 & newer)
Product #:
Mfg #: 519-6480-R1B
6
6
519-3240B
Basket - 8.12 diameter x 5.25 H
Product #:
Mfg #: 519-3240B
6a
7
7
820-4110B
Screw Lock (2 required)
Product #:
Mfg #: 820-4110B
8
8
519-9510B
Square Collar
Product #:
Mfg #: 519-9510B
9
9
519-6560B
Mounting Ring Extension (2 included)
Product #:
Mfg #: 519-6560B
10
10
819-6950B
Screw #12 x 1 1/2 PFH Type B (12 required)
Product #:
Mfg #: 819-6950B
11
11
519-9530B
Mounting Plate
Product #:
Mfg #: 519-9530B
12
12
819-0030B
Screw #12 x 1 1/4 PPH Stainless Steel (4 required)
Product #:
Mfg #: 819-0030B
