Pentair
Sta-Rite® High Head Self-Priming Centrifugal Pump 1 Phase 2 HP 115/230V
Product #:STA-101-8005
Mfg. Part #:DHG-52L

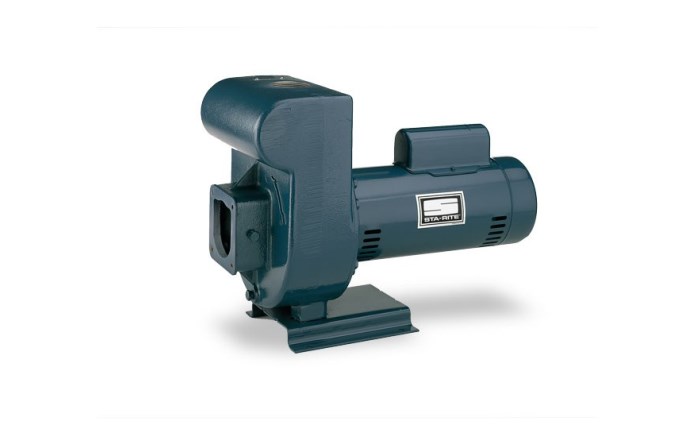

Pentair Sta-Rite® DHG-52L High Head Self-Priming Centrifugal Pump 1 Phase 2 HP 115/230V
Pentair
Sta-Rite® High Head Self-Priming Centrifugal Pump 1 Phase 2 HP 115/230V
Product #:STA-101-8005
Mfg. Part #:DHG-52L
Description
Pentair Sta-Rite® DHG-52L High Head Self-Priming Centrifugal Pump 1 Phase 2 HP 115/230V. Available in high head or medium head series (separate listing for Medium Head). Feature leak-proof mechanical seals, easy service design, heavy-duty motors, rugged construction. Drain port provided for easy winterizing and heavy-duty motors are designed for continuous operation.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandPentair
- ApplicationLawn, Outdoor
- Shipping Dimensions24.06 x 13.56 x 17.94 inch
- ColorTeal
- Each Product Weight88 pound
- Max Liquid Temperature140 degrees Fahrenheit
- Minimum Sell Quantity1
- PhaseSingle
- Voltage115V, 230V
- UPC Code022315147416
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

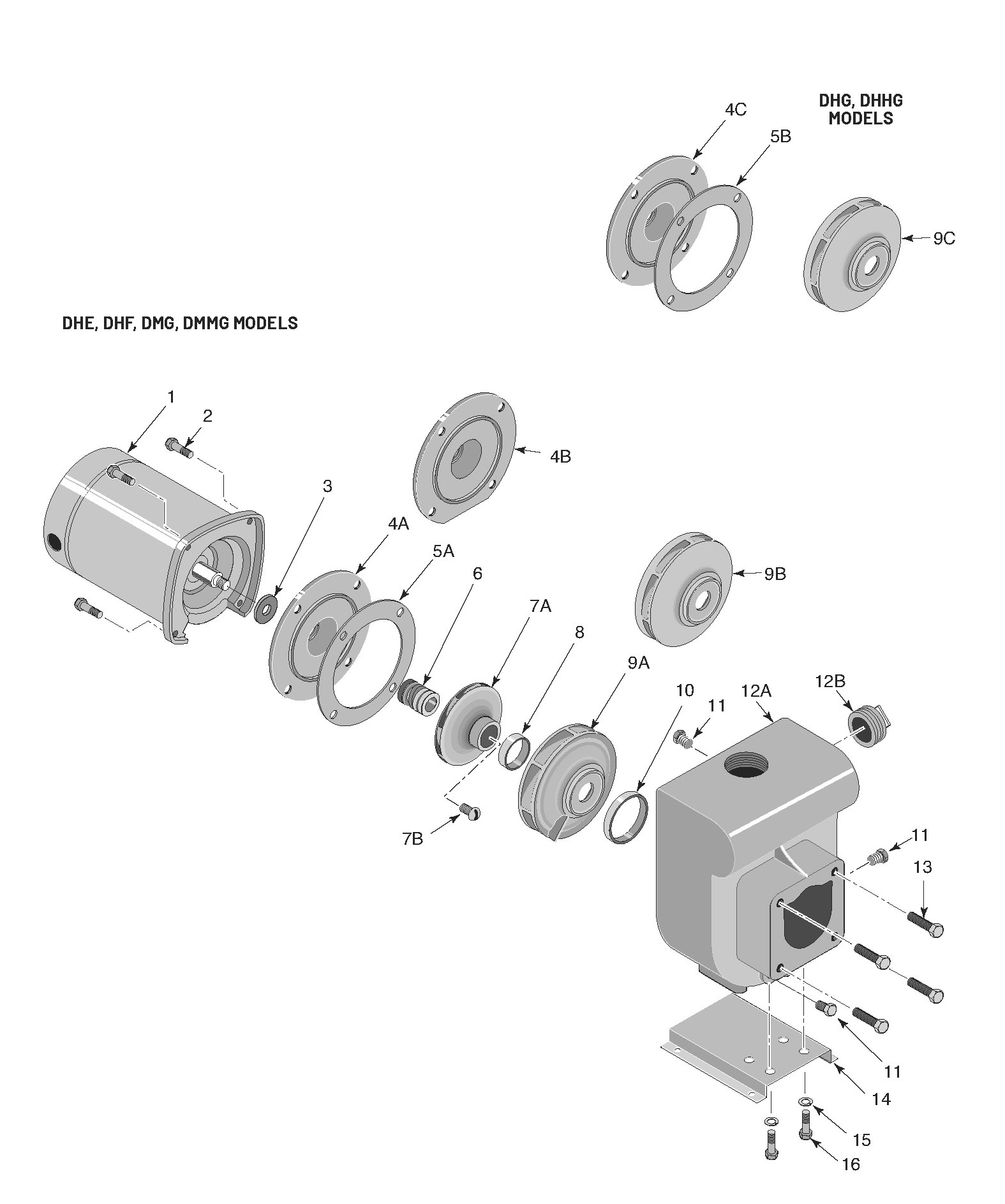

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
J218-1656
Motor - 115/230V 1ph
Product #:
Mfg #: J218-1656
1
1
AP100GL
Motor - 230/460V 3ph
Product #:
Mfg #: AP100GL
2
2
U30-74ZP
STA-101-6590
Product #: STA-101-6590
Mfg #: U30-74ZP
Notes:
4 Required 3
4C
5B
6
7A
7B
8
8
C23-19
STA-101-1224
Wear Ring
Product #: STA-101-1224
Mfg #: C23-19
9C
10
10
C21-2
STA-101-7386
Diffuser Ring
Product #: STA-101-7386
Mfg #: C21-2
11
11
U78-941ZPV
STA-101-0530
Product #: STA-101-0530
Mfg #: U78-941ZPV
Notes:
2 Required12A
13
13
U30-60ZP
STA-151-0117
Hex Cap Screw - 5/16" - 18 x 3/4"
Product #: STA-151-0117
Mfg #: U30-60ZP
Notes:
4 Required Wholegoods
There are no wholegoods available.
