Little Giant 503186 Submersible Pump with 10' Cord 115V
Description
Small Submersible Oil Filled Pump with epoxy coated cast aluminum housing. For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 300 GPH pump features a 1/4" MNPT discharge, 11.8' shut-off head capability, and screened inlet.
Branch Availability
content loaded
Specifications
- BrandLittle Giant
- Amps High Speed3.2
- Shipping Dimensions10.5 x 10.25 x 9.25 inch
- Amps Low Speed3.2
- Cord Length10 foot
- Each Product Weight8.25 pound
- Frequency Rating (Hz)60
- Master Carton Quantity4
- MaterialAluminum, Nylon, Polypropylene or polypropene
- Max Liquid Temperature120 degrees Fahrenheit
- Max Working Pressure7.5 pounds per square inch
- Minimum Sell Quantity1
- Power Rating200 watt
- Shut Off17.3 foot
- Voltage115V
- UPC Code0010121031869
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

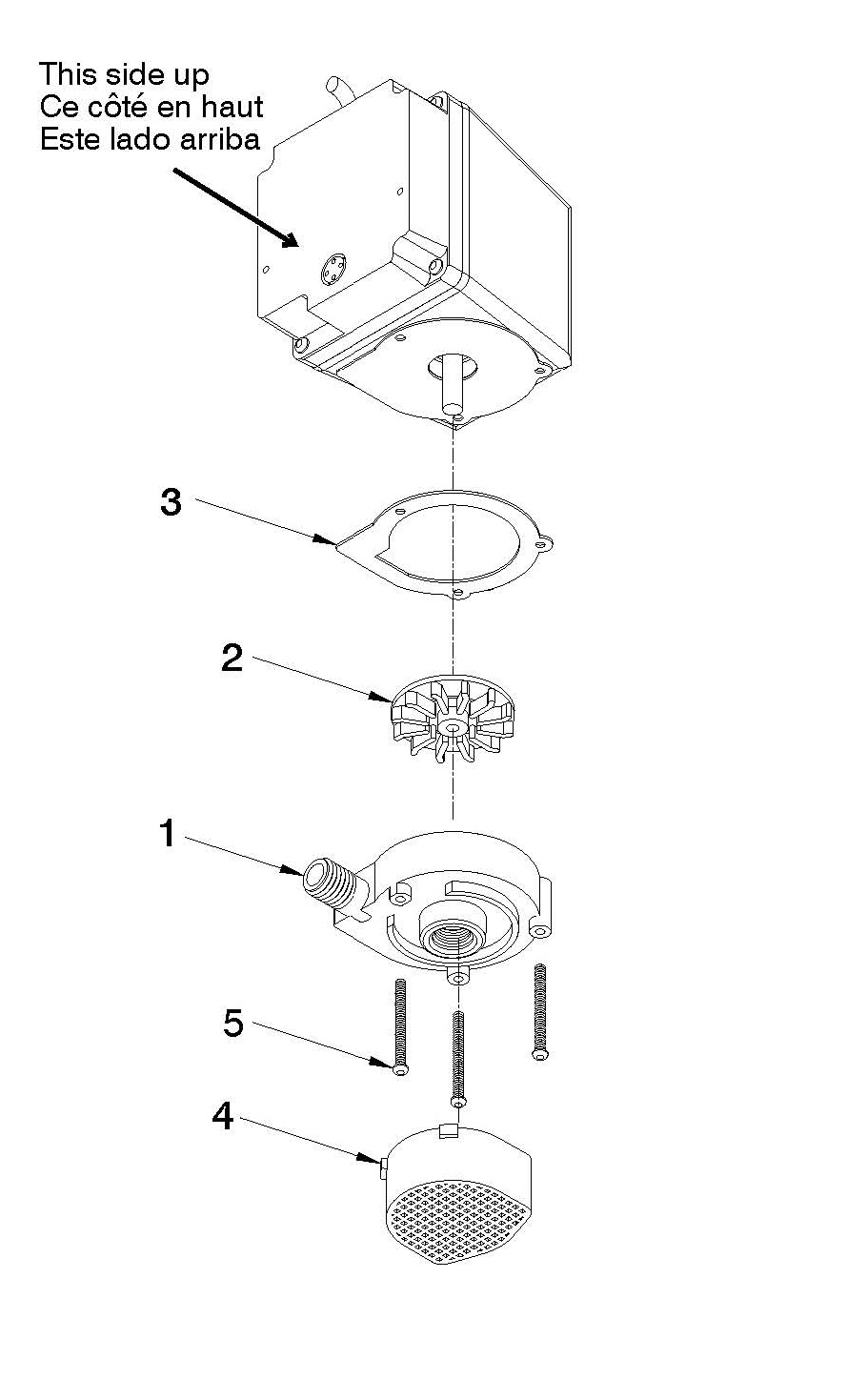

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
103375
VOLUTE- 1/2 NPT
Product #:
Mfg #: 103375
2
2
103437
LGP-101-5720
103437 #3 NYLON IMPELLER
Product #: LGP-101-5720
Mfg #: 103437
2
2
104435
LGP-101-5723
104435 #4 NYLON IMPELLER
Product #: LGP-101-5723
Mfg #: 104435
3
3
103601
LGP-101-5722
103601 #3 & #4 VOLUTE GASKET
Product #: LGP-101-5722
Mfg #: 103601
4
4
102376
SCREEN- INTAKE- BLACK
Product #:
Mfg #: 102376
5
5
902501
LGP-101-5744
902501 #3E SCREW
Product #: LGP-101-5744
Mfg #: 902501
6
6
929500
BOLT- EYE 8-32- 18-8SS
Product #:
Mfg #: 929500
Wholegoods
There are no wholegoods available.
