Hayward

Super Pump® Standard Efficiency Medium Head Up Rated Pump 1 HP 115/230V

Product #:HAY-10-308

Mfg. Part #:SP2607X10

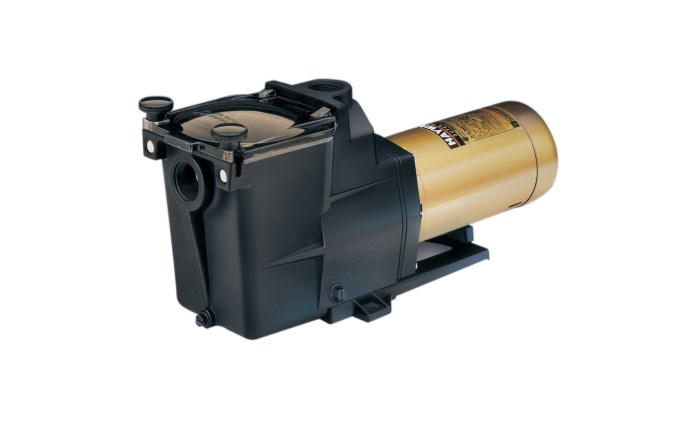

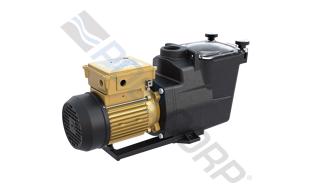

Hayward Super Pump® SP2607X10 Standard Efficiency Medium Head Up Rated Pump 1 HP 115/230V

Hayward

Super Pump® Standard Efficiency Medium Head Up Rated Pump 1 HP 115/230V

Product #:HAY-10-308

Mfg. Part #:SP2607X10

Description

Hayward Super Pump® SP2607X10 Standard Efficiency Medium Head Up Rated Pump 1 HP 115/230V. Hayward Super Pump® medium-head pumps set the industry standard for excellence and value while also meeting DOE efficiency regulations. Their heavy-duty, high-performance motor and airflow ventilation provide quieter, cooler, more efficient operation for virtually any pool or spa, while their exclusive service-ease design offers quick 4-bolt access to all internal components. With these and other advanced features, it’s easy to see why Super Pump is the best-selling medium-head pool pump in the world.

Feature Bullets

  • Reliability and performance
  • Quieter, cooler operated heavy-duty motor
  • Exclusive, swing away hand knobs make strainer cover removal easy with no loose parts
  • Features an oversized debris basket has extra leaf holding capacity for less frequent maintenance
  • Easy installation and servicing with quick 4 bolts access to internal components
  • Corrosion-proof impeller has smooth, wide openings to prevent fouling or clogging
  • Heat-resistant, industrial size ceramic seal is long-wearing and drip proof
  • Super-size housing and diffuser ensure rapid priming
  • Mounting base provides stable, stress-free support, plus versatility for any installation requirement and adapts 48- and 56-frame motors
  • Self-priming capability
  • Standard efficient
  • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • Amps High Speed15
    • Shipping Dimensions30.1 x 10.6 x 11.8 inch
    • Amps Low Speed15
    • ApplicationInground, Pool, Spa
    • ColorBlack, Gold
    • Discharge Size1.5 inch
    • Each Product Weight36.1 pound
    • Frequency Rating (Hz)60
    • Horsepower1 horse power
    • Master Carton Quantity1
    • Max Working Pressure50 pounds per square inch
    • Minimum Sell Quantity1
    • Motor RatingUp-Rated
    • Motor Speed1-Speed
    • Pallet Quantity24
    • Product Height10.875 inch
    • Product Width7.625 inch
    • Service Factor1.1
    • Standards ApprovalsNSF Certified, UL Certified, CSA Certified
    • Suction Size1.5 inch
    • Voltage115V, 230V
    • Product Depth24 inch
    • Seal MaterialCeramic
    • UPC Code0610377052696

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

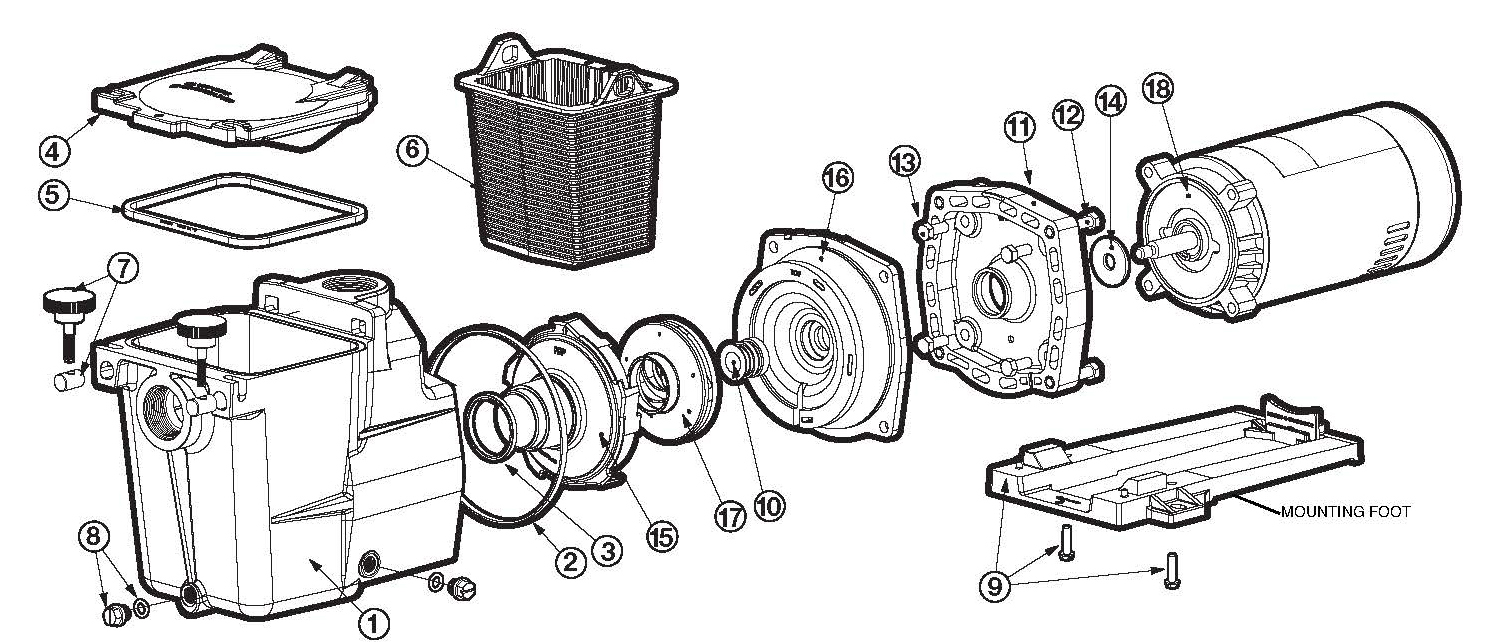

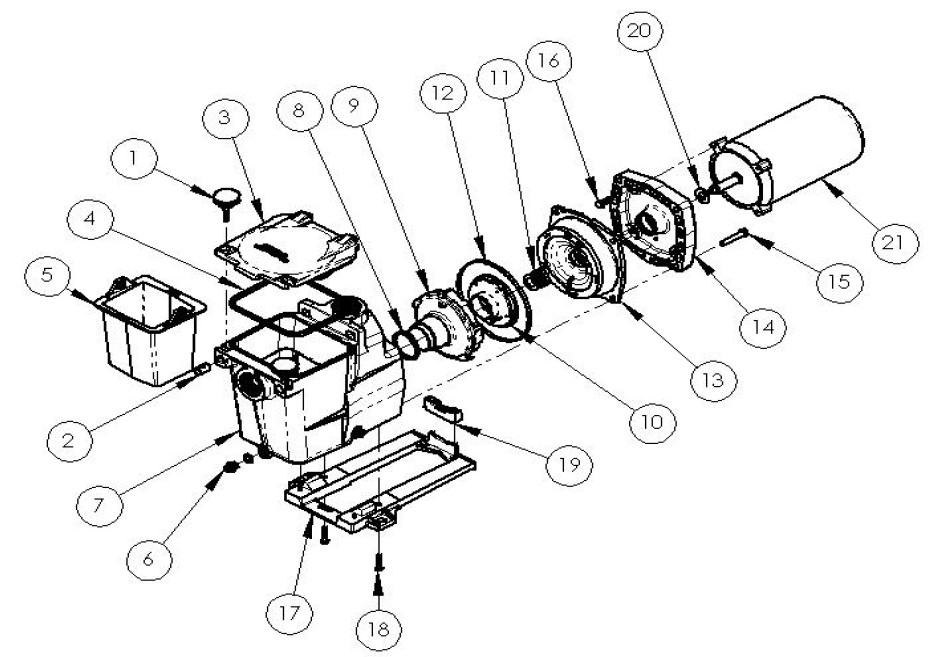

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    SPX1600P
    HAY-101-2015
    HAND KNOB
    Product #: HAY-101-2015
    Mfg #: SPX1600P
    Notes:
    2 Required
    2
    2
    SPX1600PN
    HAY-101-2086
    Product #: HAY-101-2086
    Mfg #: SPX1600PN
    Notes:
    2 Required
    3
    3
    SPX1600D
    HAY-101-2010
    Product #: HAY-101-2010
    Mfg #: SPX1600D
    4
    4
    SPX1600S
    HAY-101-2017
    Product #: HAY-101-2017
    Mfg #: SPX1600S
    4
    4
    O-177-9
    SPG-601-1114
    Product #: SPG-601-1114
    Mfg #: O-177-9
    5
    5
    SPX1600M
    HAY-101-2013
    Product #: HAY-101-2013
    Mfg #: SPX1600M
    6
    6
    SPX1700FG
    HAY-101-2034
    Product #: HAY-101-2034
    Mfg #: SPX1700FG
    Notes:
    2 Required
    7
    7
    SPX1600AA
    HAY-101-2009
    PUMP/STRAINER HOUSING
    Product #: HAY-101-2009
    Mfg #: SPX1600AA
    7
    7
    SPX1620AA
    HAY-101-2030
    Product #: HAY-101-2030
    Mfg #: SPX1620AA
    8
    8
    SPX1600R
    HAY-101-2016
    Product #: HAY-101-2016
    Mfg #: SPX1600R
    8
    8
    O-141-9
    SPG-601-1286
    Product #: SPG-601-1286
    Mfg #: O-141-9
    9
    9
    SPX2600B
    HAY-101-2048
    Product #: HAY-101-2048
    Mfg #: SPX2600B
    10
    10
    SPX2607C
    HAY-101-2053
    Product #: HAY-101-2053
    Mfg #: SPX2607C
    11
    11
    SPX1600Z2
    HAY-101-2020
    Product #: HAY-101-2020
    Mfg #: SPX1600Z2
    11
    11
    201
    SPG-60-0201
    Product #: SPG-60-0201
    Mfg #: 201
