WhisperFlo® High Performance Pool Pump 1HP 115/208-230V

Product #:PAC-10-7702

Mfg. Part #:011527-INT


Pentair 011527-INT WhisperFlo® High Performance Pool Pump 1HP 115/208-230V, 15.1/8.5-7.7 amps, 1.65 THP, 2" NPT Port

Pentair

WhisperFlo® High Performance Pool Pump 1HP 115/208-230V

Product #:PAC-10-7702

Mfg. Part #:011527-INT

EA

Description

Pentair is proud to announce updates to the line of WhisperFlo High Performance Pumps. We've added the first and only single-speed pump models to use NEMA Premium® Efficient motors for pool applications.* The new and improved WhisperFlo DOE compliant pumps are designed to help save electricity and optimize hydraulic horsepower without sacrificing performance.

Documents

Feature Bullets

  • Available high-quality proprietary Totally Enclosed Fan-Cooled (TEFC) motor for a long, worry-free life
  • Enhanced design and balanced flow enable greater efficiency and reduced operating costs
  • Improved design that stands up to demanding installations and conditions
  • 2" NPT suction and discharge ports
  • Cam and Ramp™ Lid permits easy inspection and cleaning of the strainer basket

    • Branch Availability

    content loaded

    Specifications

    • BrandPentair
    • Amperage15.1 amperage
    • Shipping Dimensions28.35 x 12.62 x 15 inch
    • Amps High Speed15.1
    • Amps Low Speed7.7
    • ApplicationPool
    • ChannelNone
    • Each Product Weight50 pound
    • Flow Rate Max90 gal/min
    • Horsepower1 horse power
    • Minimum Sell Quantity1
    • Motor Speed1-Speed
    • Port Size 12 inch
    • Port Size 1 FITNPT
    • Product Weight50 pound
    • Service Factor1
    • Thrust HP1.65
    • Voltage230V
    • Warranty - General60 days
    • UPC Code788379508043

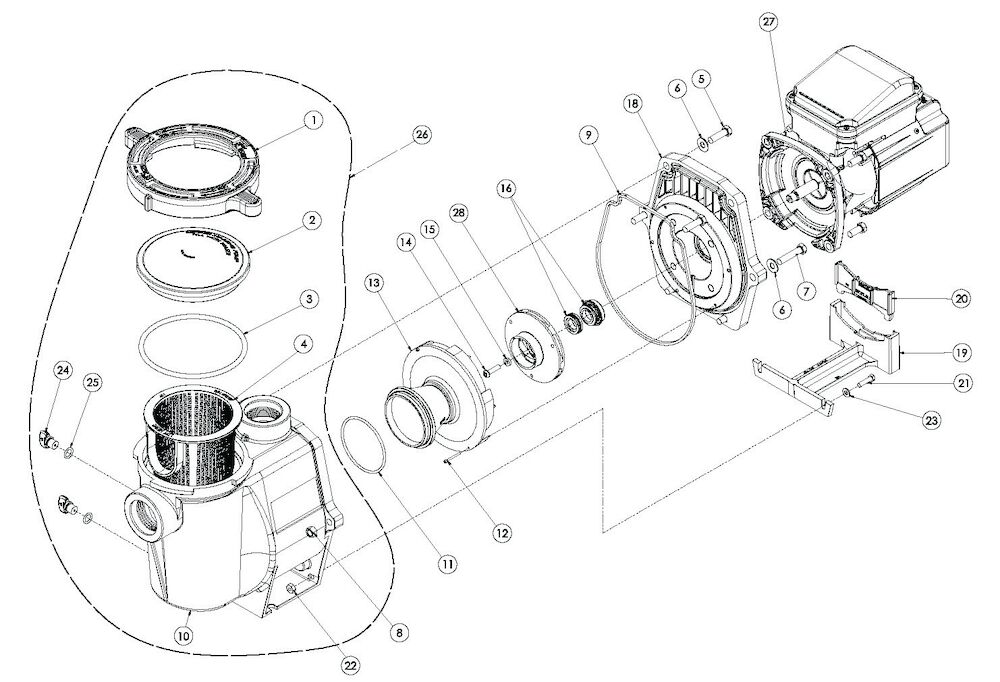

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    357199Z
    PUR-101-3370
    Cam & Ramp® Plastic Clamp
    Product #: PUR-101-3370
    Mfg #: 357199Z
    2
    2
    357151Z
    PAC-101-4960
    WhisperFlo® Clear Strainer Cover After 11/1998
    Product #: PAC-101-4960
    Mfg #: 357151Z
    2
    2
    357156
    PAC-101-0108
    Lid, Chemical Resistant
    Product #: PAC-101-0108
    Mfg #: 357156
    3
    3
    350013
    PAC-101-3148
    O-Ring, Lid
    Product #: PAC-101-3148
    Mfg #: 350013
    4
    4
    070387Z
    PUR-101-1052
    8" Pump Strainer Basket for Whisperflo Pump
    Product #: PUR-101-1052
    Mfg #: 070387Z
    5
    5
    070430Z
    PAC-101-9863
    Stainless Steel Steel Plate Bolt 18-8 3/8-16" x 1.25"
    Product #: PAC-101-9863
    Mfg #: 070430Z
    Notes:
    4 Required
    6
    6
    072184Z
    PUR-101-1462
    Stainless Steel Flat Washer 18-8 3/8" x 7/8" x .5"
    Product #: PUR-101-1462
    Mfg #: 072184Z
    Notes:
    6 Required
    7
    7
    070431Z
    PAC-101-9864
    Stainless Steel Hex Head Bolt 18-8 3/8-16" x 2"
    Product #: PAC-101-9864
    Mfg #: 070431Z
    Notes:
    2 Required
    8
    8
    071403Z
    PAC-101-9857
    Stainless Steel Hex Head Nut 3/8"-16
    Product #: PAC-101-9857
    Mfg #: 071403Z
    Notes:
    2 Required
    9
    9
    357100Z
    PUR-101-1062
    Black Seal Plate Gasket
    Product #: PUR-101-1062
    Mfg #: 357100Z
    10
    10
    350015Z
    PUR-101-3409
    WhisperFlo Strainer Pot Volute
    Product #: PUR-101-3409
    Mfg #: 350015Z
    11
    11
    355227Z
    PUR-101-1065
    Diffuser O-Ring for WhisperFlo Pump
    Product #: PUR-101-1065
    Mfg #: 355227Z
    12
    12
    071660Z
    PUR-101-1057
    Stainless Steel Diffuser Screw Set 4-40 x 1 1/8"
    Product #: PUR-101-1057
    Mfg #: 071660Z
    Notes:
    2 Required
    13
    13
    072927Z
    PUR-101-1058
    Diffuser for WhisperFlo .5HP-2HP
    Product #: PUR-101-1058
    Mfg #: 072927Z
    14
    14
    071652Z
    PUR-101-1055
    Impeller Screw 1/4"-20 x 1"
    Product #: PUR-101-1055
    Mfg #: 071652Z
