Raypak

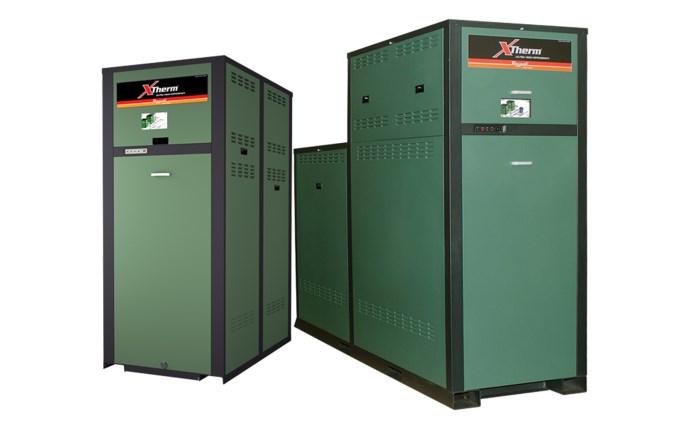

XTHerm Natural Gas Heater 97% EE 1500K BTU with CAL CODE
Product #:RAY-15-0010
Mfg. Part #:100-10006507
Raypak XTHerm 100-10006507 Natural Gas Heater 97% EE 1500K BTU with CAL CODE
Raypak
XTHerm Natural Gas Heater 97% EE 1500K BTU with CAL CODE
Product #:RAY-15-0010
Mfg. Part #:100-10006507
EA
Description
Time honored technology unites with cutting edge advancement.
The XTherm combines the proven capability of a finned cupronickel tube heat exchanger with a stainless-steel condensing heat exchanger to maximize thermal efficiency (97-97.7%) and provide long-term reliability. Raypak’s XTherm is built with commercial-grade components and materials. From our steel channel base to our stainless-steel flue wrapper and condensing heat exchanger, you can tell the XTherm is built to last. It’s easy to handle and install, but still user-friendly to service.
The XTherm combines the proven capability of a finned cupronickel tube heat exchanger with a stainless-steel condensing heat exchanger to maximize thermal efficiency (97-97.7%) and provide long-term reliability. Raypak’s XTherm is built with commercial-grade components and materials. From our steel channel base to our stainless-steel flue wrapper and condensing heat exchanger, you can tell the XTherm is built to last. It’s easy to handle and install, but still user-friendly to service.
Branch Availability
content loaded
Specifications
- BrandRaypak
- ApplicationPool
- Shipping Dimensions0.01 x 0.01 x 0.01 inch
- BTU Input1500 British thermal unit
- ChannelNone
- ColorGreen
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight1234 pound
- FinishStandard
- Flow Rate Max70 gal/min
- Fuel TypeNatural Gas
- Minimum Sell Quantity1
- PhaseSingle
- Thermal Efficiency97
- Warranty - AdditionalHeat Exchanger - 5 year
- Warranty - General1 years
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

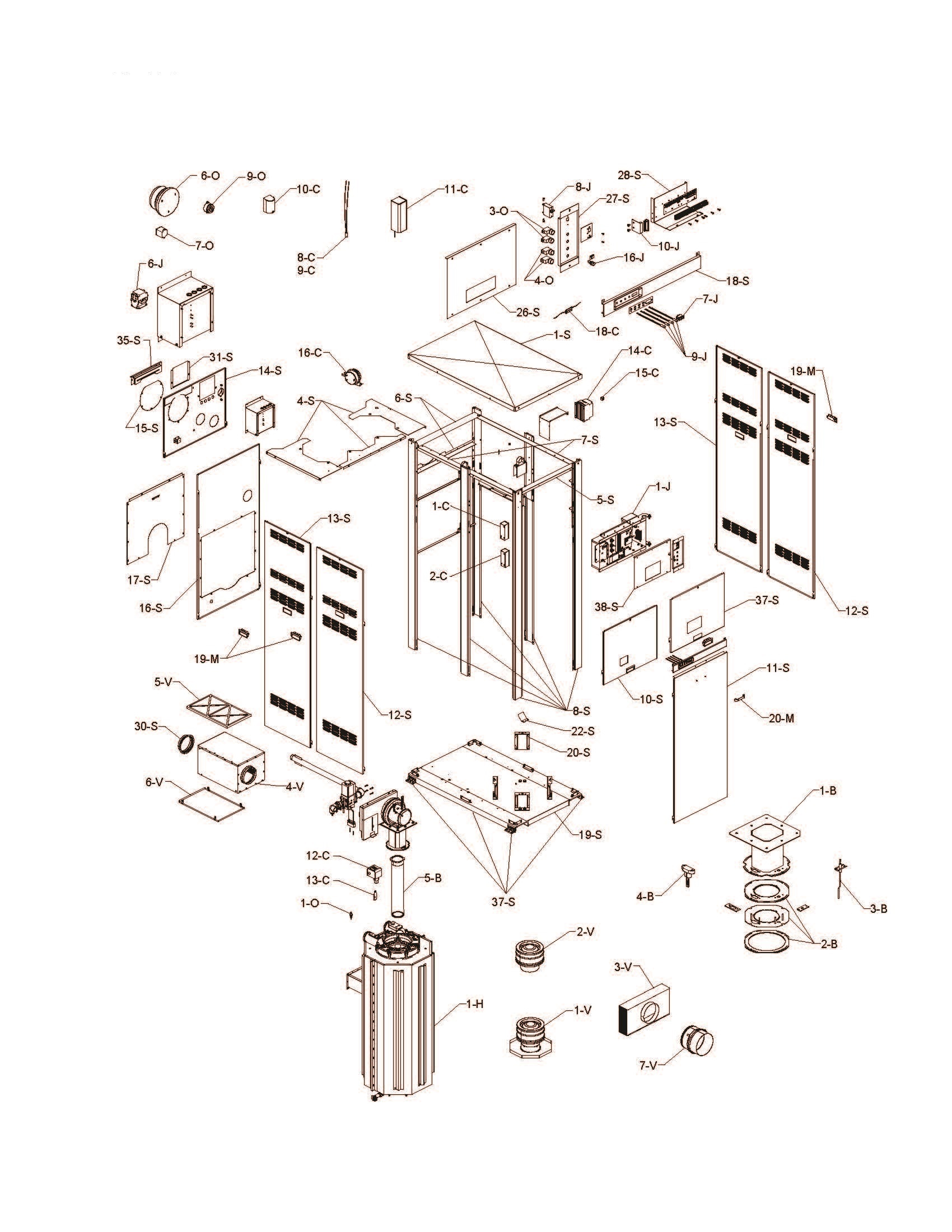

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
011749F
Adapter Assembly
Product #:
Mfg #: 011749F
2-B
2-B
011751F
RAY-151-0204
Product #: RAY-151-0204
Mfg #: 011751F
3-B
4-B
5-B
5-B
011755F
Burner
Product #:
Mfg #: 011755F
1-C
1-C
011860F
Auto-Reset Adjustable High Limit 240F Max
Product #:
Mfg #: 011860F
1-C
1-C
012546F
Auto-Reset Adjustable High Limit 200F Max
Product #:
Mfg #: 012546F
1-C
1-C
006445F
Auto-Reset Adjustable High Limit 180F Max
Product #:
Mfg #: 006445F
2-C
2-C
2-C
008081F
Manual-Reset Adjustable High Limit 200F
Product #:
Mfg #: 008081F
2-C
3-C
3-C
3-C
014325F
PIM (Platform Ignition Module) Single-Try CSD-1
Product #:
Mfg #: 014325F
4-C
4-C
013971F
Fuse 5 Amp (Fast Acting)
Product #:
Mfg #: 013971F
5-C
5-C
013935F
PC Board VERSA IC
Product #:
Mfg #: 013935F
