Jandy VS FloPro VSFHP270DV2AS 2.7 115/230V HP Pump with SpeedSet Controller
Description
Designed to save energy and space, the FloPro 2.7 HP variable-speed pump now provides even greater performance and efficiency while noticeably reducing noise. With a 20% improvement in hydraulic performance from the previous generation, and dual voltage capabilities as well as two auxiliary relay connections, our smallest pump accommodates large pools and spas with multiple features.
Branch Availability
content loaded
Specifications
- BrandJandy
- ApplicationInground, Pool
- Shipping Dimensions29 x 13 x 16.38 inch
- Commercial, Residential, or ProfessionalResidential
- Connection Size 12 inch
- Each Product Weight54 pound
- Green or Energy Efficient ProductTrue
- Horsepower2.7 horse power
- Minimum Sell Quantity1
- Motor Enclosure TypeTotally Enclosed Fan Cooled
- Standards ApprovalsNSF Certified, Energy Star Certified, cETLus Listed
- Thrust HP2.7
- Voltage115V, 230V
- Wattage2550 watt
- Weighted Energy Factor (WEF)7.3/8.7
- UPC Code052337101851
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

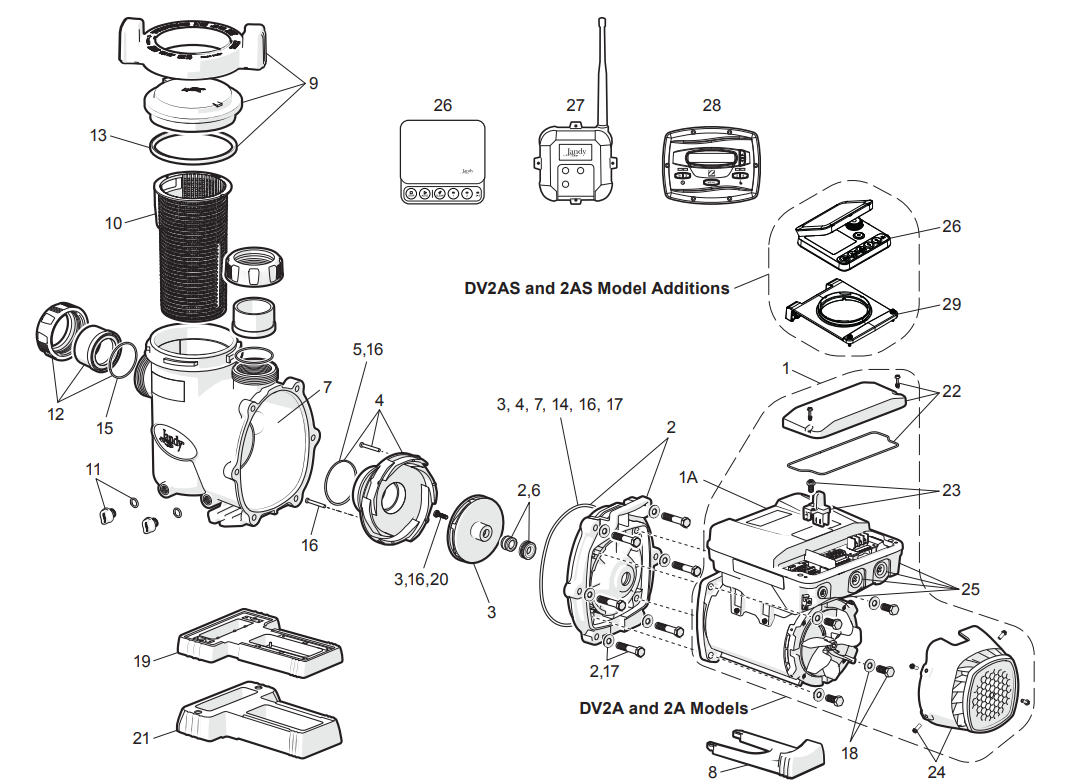

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
R0816800
TLD-101-1009
Product #: TLD-101-1009
Mfg #: R0816800
1A
1A
R0974400
TLD-101-0011
Product #: TLD-101-0011
Mfg #: R0974400
2
2
R0479500
TLD-101-2042
Product #: TLD-101-2042
Mfg #: R0479500
Notes:
Backplate, Mounting Bolts/Washers (6), Backplate O-Ring. Mechanical Seal3
4
5
5
R0622000
TLD-101-1102
Product #: TLD-101-1102
Mfg #: R0622000
5
6
6
R0479400
TLD-101-2032
Product #: TLD-101-2032
Mfg #: R0479400
Notes:
Carbon and Ceramic13
7
7
R0479800
TLD-101-2045
Product #: TLD-101-2045
Mfg #: R0479800
Notes:
Body and Backplate O-Ring8
8
R0479900
TLD-101-7203
Product #: TLD-101-7203
Mfg #: R0479900
9
9
R0480000
TLD-101-2041
Product #: TLD-101-2041
Mfg #: R0480000
Notes:
Lid, Locking Ring, O-Ring10
10
R0480100
TLD-101-2033
Product #: TLD-101-2033
Mfg #: R0480100
11
12
12
R0327301
TLD-101-2046
Product #: TLD-101-2046
Mfg #: R0327301
