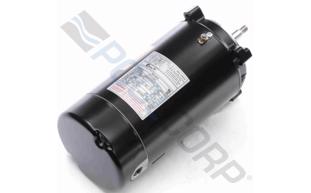

Century® ST1072 ODP Threaded Pool Filter Motor .75HP 115/230V
Description
This ODP Threaded Pool Filter Motor .75HP 115/230V is a replacement part that can be relied upon when it matters the most. This motor is made from high-quality parts and materials for long-term performance.
Branch Availability
content loaded
Specifications
- BrandCentury
- ApplicationPool
- Shipping Dimensions17.5 x 9.5 x 9.5 inch
- ColorBlack
- Frequency Rating (Hz)60
- Horsepower0.75 horse power
- Standards ApprovalsCSA Certified
- Voltage115V, 230V
- Ambient Temperature50 degrees Celsius
- Amps High Speed15
- Amps Low Speed7.5
- Bearing TypeSealed Ball
- Commercial, Residential, or ProfessionalResidential
- Diameter6.5 inch
- Duty CycleContinuous
- Each Product Weight20.8 pound
- Efficiency GroupStandard
- Flange MaterialAluminum
- Frame MaterialRolled Steel
- Insulation ClassB
- Minimum Sell Quantity1
- Motor Capacitor TypeStart
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56J
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity40
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1.5
- Shaft DesignThreaded
- Shaft Diameter0.625 inch
- Shaft Length2.5625 inch
- Shaft Material303 Stainless Steel
- UPC Code786674031778
Parts & Schematics
There are no parts or schematics available.
